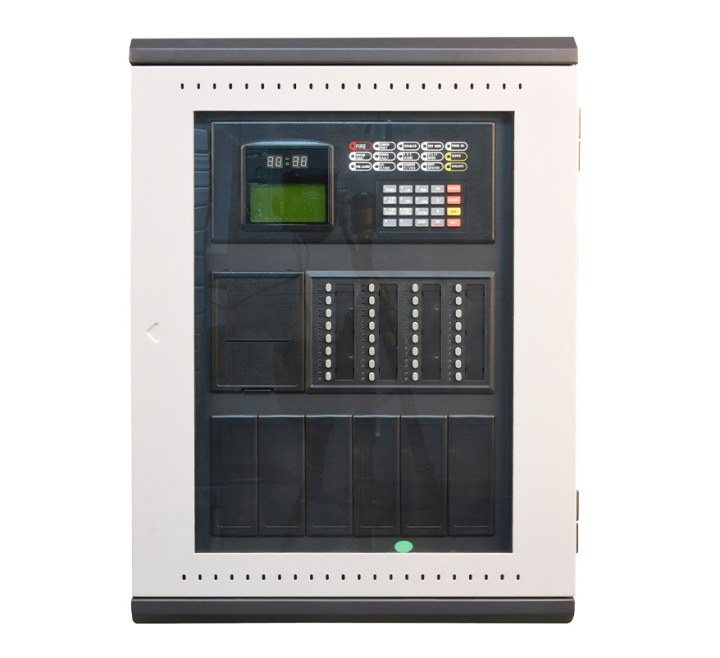

GST 1 Loop Addressable Fire Alarm Panel (GST200N-1)
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for GST 1 Loop Addressable Fire Alarm Panel (GST200N-1)
GST200N Intelligent Fire Alarm Control Panels are designed to comply with EN54-2 and EN54-4 standards with the benefits of simple installation, operation, and easy maintenance. 1 loop addressable panel which is suitable for small buildings such as offices, restaurants, shops, etc.
Key Features of the GST200N-1 |
|---|
|
> Max. 30 zones, each zone has its own alarm and fault/disable indicator and a label
> Single loop panel capacity 235 addressable devices. Can be extended to 2 loops by using an additional loop card (LC200). > Compatible with GST intelligent and digital products > 8 lines x 18 characters LCD screen > 15 LEDs to display important information > Non-Volatile memory ensures no loss of data even if power supply is accidentally removed > Wide range power supply > Sounder strobe output provides 0.5 A / 24 V load, compatible with GST conventional sounders > RS232 interface enables communication with PC, advanced user friendly programming software including ‘Fuzzy logic' > RS485 (max 32 panels w/ card) or CAN (max 240 panels w/ card) interface enables networking, built-in RS485 repeater output (max. 10 repeaters) > Multiple language options (separate SKUs) > Optional panel printer and GMC graphic station > PAS and Acknowledge Function, Dirty Detector Reporting, Walk Test Function |
| Brand | GST |
|---|---|
| Manufacturer Part No. | GST200N-1 |
Write Your Own Review
FAQ’s for GST 1 Loop Addressable Fire Alarm Panel (GST200N-1)
No questions yet. Be the first to ask the question!
Product Specification for GST 1 Loop Addressable Fire Alarm Panel (GST200N-1)
| Electrical | |
|---|---|
| Power consumption | Standby: 21 Ah / 24 VDC |
| Operating voltage | 100 to 240 VAC, 50/60 Hz |
| Current consumption | 1.5 A |
| Loop | |
| Maximum loop capacity | 1 |
| Quantity of devices per loop | 235 |
| Cable rating | Min. 1.0 mm2, ideally 1.5 mm2, 1500 m |
| Zone | |
| Maximum zone capacity | up to 30 |
| Output | |
| Output quantity | 3 |
| Output type and rating | Min. 1.5 mm2, ideally 2.5 mm2 |
| Fire alarm signalling | 500 mA / 24 VDC / NO-NC-Active |
| Fault signalling | NO / NC |
| Termination | 4k7 ohm |
| Physical | |
| Form factor | Large |
| Physical dimensions | 580 x 420 x 202 mm (H x W x D) |
| Mounting type | Surface mount |
| Environmental | |
| Operating temperature | 0 to +40°C |
| Relative humidity | ≤95% noncondensing |
| IP rating | IP30 |
| Regulatory | |
| Certification | CE, LPCB |
| Standards | EN54-2 EN54-4 |
