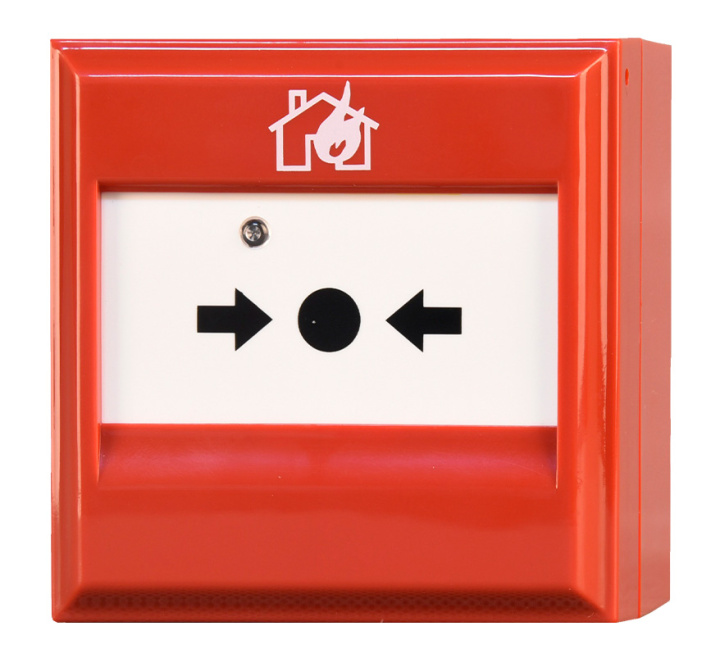

GST Innovation Conventional Manual Call Point with Surface Back Box (DC-9204E)
- Buy 10 for £11.81 £9.84 each and save 2%
Product Details for GST Innovation Conventional Manual Call Point with Surface Back Box (DC-9204E)
The GST DC-9204E is a conventional manual call point for use on compatible conventional systems. It allows user interaction with the fire alarm system for manual alarm reporting.
The DC-9204E is simply connected by two wires to any compatible fire alarm zone monitor where it gets its power and reports events using the same 2 wires. The provided reset key is also used to unlock the MCP.
The DC-9204E is suitable for public places where accidental activation can be avoided by using an optional protection flip cover (D-92FC). For outdoor applications a weatherproof enclosure (D-92WPB) is additionally available.
An alarm is reported by pressing the resettable element. The alarm is confirmed by the DC-9204E by an illuminated LED. The alarm is signalled automatically to the conventional fire alarm zone. To reset a special key is supplied with the unit.
Key Features of the DC-9204E |
|---|
|
> Easy to install with plugin connector
> Simple alarming activation > Easy reset using a special key > Protection hinged cover & outdoor mounting box available separately > Approved to the latest standards, LPCB marked |
| Brand | GST |
|---|---|
| Manufacturer Part No. | DC-9204E |
FAQ’s for GST Innovation Conventional Manual Call Point with Surface Back Box (DC-9204E)
Product Specification for GST Innovation Conventional Manual Call Point with Surface Back Box (DC-9204E)
| General | |
|---|---|
| Status indication | Red LED |
| Compatibility | Most conventional zone monitors |
| Connectivity | Zone interface |
| Electrical | |
| Power consumption | 100 mW (max) |
| Operating voltage | 12 to 28 VDC 24 VDC (nominal) |
| Current consumption | 0 mA (Standby) ≤30 mA (Alarm) |
| Cable specification | >1.0 mm² |
| No. of cable cores | 2 |
| Terminals | 4 |
| Series resistor | 470 Ω ½ W |
| Detection | |
| Detection principle | Microswitch |
| Coverage area | Subject to local codes |
| Zone length | CIE Specific |
| Physical | |
| Physical dimensions | 87.1 x 87.1 x 58 mm (W x H x D) |
| Shipping weight | 160 g |
| Colour | Red |
| Mounting type | Wall mount |
| Functional marking | House of Fire |
| Environmental | |
| Vandal proof | No |
| Operating temperature | -10 to +50°C |
| Relative humidity | ≤95% noncondensing |
| Environment | Indoor |
| IP rating | IP43 |
| Regulatory | |
| Compliancy | CE |
| Certification | CPR |
| Standards | EN54-11 |
