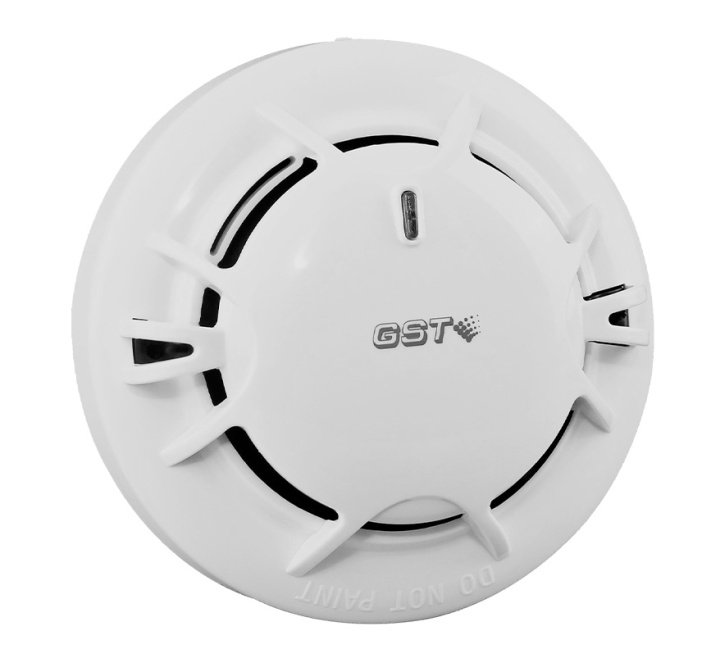

GST Conventional Optical/Heat Multisensor Detector (DC-9101E)
SKU
DC-9101E
£17.58
£14.65
GST DC9000 Series conventional multisensor fire detector
- Buy 10 for £17.32 £14.43 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for GST Conventional Optical/Heat Multisensor Detector (DC-9101E)
The GST DC-9101E combines photoelectric (optical) detection, fixed temperature and rate-of-rise detection technology. The smoke and heat sensors are integrated to provide a solution to a wide range of applications, allowing detection of more complex fire types. Amongst these are fire types generating black smoke as well as small particle fires such as those from burning alcohol.
The detector supports installation on the GST DB-01 conventional detector base for standard applications, or the GST DB-01D diode base when head-out functionality to BS5839 standard is required. Detection sensitivities are programmable using the GST P-9910B device programmer.
Key Features of the DC-9101E |
|---|
|
> Supports drift compensation offering environmental adaptability
> Self-diagnostic > Local test activation with reed switch > Chamber contamination checking > All round LED visibility (360° viewing angle) avoids time spent on specific detector orientation > Configurable polling LED support > Remote indicator output > 2 Programmable smoke sensitivity levels |
| Brand | GST |
|---|---|
| Manufacturer Part No. | DC-9101E |
Write Your Own Review
FAQ’s for GST Conventional Optical/Heat Multisensor Detector (DC-9101E)
No questions yet. Be the first to ask the question!
Product Specification for GST Conventional Optical/Heat Multisensor Detector (DC-9101E)
| General | |
|---|---|
| Status indication | Red LED |
| User interface | Via LED - polling, fault, contamination and alarm |
| Compatibility | GST100A Series conventional CIEs as well as GST I-9319 Zone Monitor |
| Reset voltage | <1 VDC |
| Reset time | >2 s |
| Alarm levels | 2 |
| Connectivity | Zone connection - 2-core (polarity sensitive), RI connection - 2-core (polarity sensitive) |
| Electrical | |
| Operating voltage | 16 VDC to 28 VDC (24 VDC typical) |
| Current consumption | <60 μA (Quiescent) ≤55 mA (Alarm) |
| Cable specification | >1.0 mm² |
| No. of cable cores | 2 |
| Terminals | 4 |
| Detection | |
| Detection principle | Optical & Heat |
| Sensitivity | Programmable |
| Zone length | Panel dependent |
| Heat Class | A2R |
| Activation temperature | 62°C |
| Output | |
| Remote alarm output | 1 |
| Physical | |
| Physical dimensions | 54.5 mm (including base) x 100 mm Ø |
| Net weight | ±110 g |
| Colour | White |
| Mounting type | Ceiling mount |
| Material (body) | ABS |
| Environmental | |
| Vandal proof | No |
| Operating temperature | -10 to +50°C |
| Relative humidity | 0 to 95% noncondensing |
| Environment | Indoor |
| IP rating | IP2x |
| Regulatory | |
| Compliance | CE, WEEE |
| Certification | EN54-5, EN54-7 |
| Standards | LPCB |
