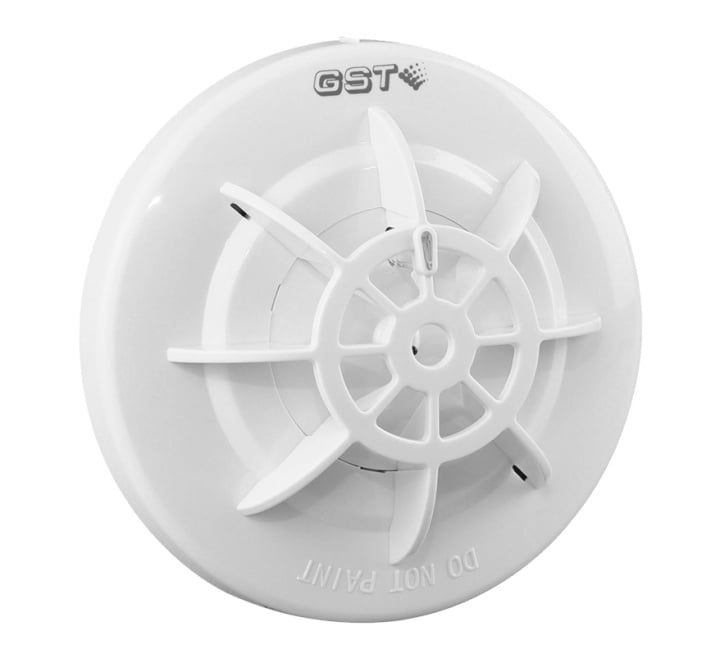

GST Conventional Heat Detector (DC-9103E)
SKU
DC-9103E
£11.46
£9.55
GST DC9000 Series conventional heat detector
- Buy 10 for £11.28 £9.40 each and save 2%
In Stock
Product Details for GST Conventional Heat Detector (DC-9103E)
The GST DC-9103E is a configurable conventional rate-of- rise or fixed temperature heat detector.
The detector supports installation on the GST DB-01 conventional detector base for standard applications, or the GST DB-01D diode base when head-out functionality to BS5839 standard is required. Detection configuration is programmable using the GST P-9910B device programmer.
Key Features of the DC-9103E |
|---|
|
> Self-diagnostic
> Local test activation with reed switch > All round LED visibility (360° viewing angle) avoids time spent on specific detector orientation > Configurable polling LED support > Remote indicator output > 3 Programmable operating levels (A1R, A2S and BS) > Compatible mounting bases are sold separately |
| Brand | GST |
|---|---|
| Manufacturer Part No. | DC-9103E |
Write Your Own Review
FAQ’s for GST Conventional Heat Detector (DC-9103E)
No questions yet. Be the first to ask the question!
Product Specification for GST Conventional Heat Detector (DC-9103E)
| General | |
|---|---|
| Status indication | Red LED |
| User interface | Via LED - polling, fault, contamination and alarm |
| Compatibility | GST100A Series conventional CIEs as well as GST I-9319 Zone Monitor |
| Reset voltage | < 1 VDC |
| Reset time | >10 s |
| Alarm levels | 3 |
| Connectivity | Zone connection - 2-core (polarity sensitive), RI connection - 2-core (polarity sensitive) |
| Electrical | |
| Operating voltage | 16 VDC to 28 VDC (24 VDC typical) |
| Current consumption | <60 μA (Quiescent) ≤55 mA (Alarm) |
| Cable specification | >1.0 mm² |
| No. of cable cores | 2 |
| Terminals | 4 |
| Detection | |
| Detection principle | Heat |
| Sensitivity | Programmable |
| Zone length | Panel dependent |
| Heat Class | A1R, A2S and BS |
| Physical | |
| Physical dimensions | 54.5 mm (including base) x 100 mm Ø |
| Net weight | ±110 g |
| Colour | White |
| Mounting type | Ceiling mount |
| Material (body) | ABS |
| Mounting hole distance | 45 to 75 mm |
| Environmental | |
| Vandal proof | No |
| Operating temperature | -10 to +65°C |
| Relative humidity | 0 to 95% noncondensing |
| Environment | Indoor |
| IP rating | IP2x |
| Regulatory | |
| Compliance | CE, WEEE |
| Certification | EN54-5 |
| Standards | LPCB |
