GST Conventional Sounder (C-9404)

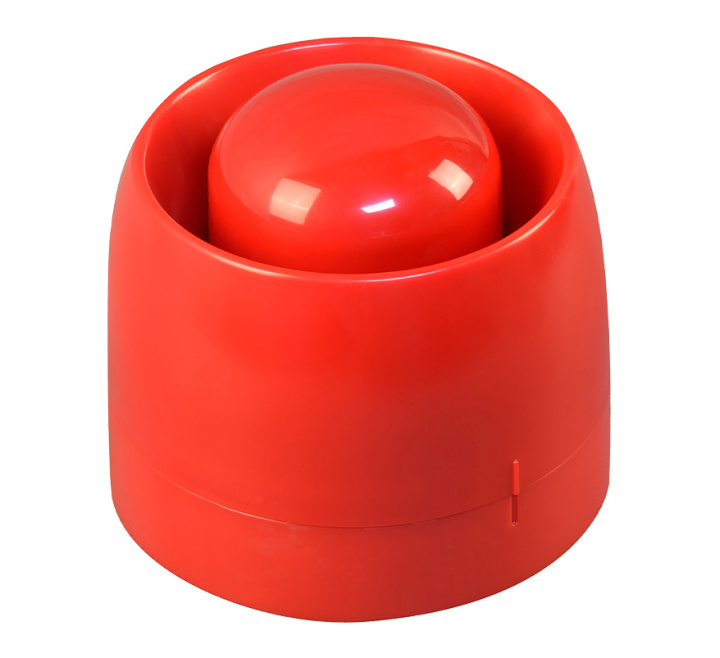

The GST C-9404 Conventional Sounder is an audible alarm device used to warn people in the field when a fire event occurs. It provides an audible alarm signal when applied to external 24VDC power (D1 connected with positive and D2 with negative). A 25.5mm high shallow base and a 40mm high deep base are available.
Tone can set through pins inserted on the main circuit board.
| Key Features |
|---|
| > 2 selectable tones > Standard EN 54-3 > Red body |
| Manufacturer | GST |
|---|---|
| MPN | C-9404 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Operating Voltage Power: | 24V (20V~28V) |
| Operating Current: | Start current ≤35mA |
| Power Consumption: | 0.84W |
| Indoor Application Type: | Type A |
| Sound Level Tone 1: | Minimum sound level 95db (1 meter in front) |
| Sound Level Tone 2: | Minimum sound level 95db (1 meter in front) |
| Ingress Protection Rating: | IP33C |
| Operating Temperature: | -10℃ ~ +50℃ |
| Relative Humidity: | ≤95%, non-condensing |
| Material of Enclosure and Color: | ABS, red |
| Dimension (D×H) - deep base: | ф110mm×110.4mm |
| Dimension (D×H) - shallow base: | ф110mm×95.9mm |
| Mounting Hole Spacing: | 55mm ~ 80mm |
| Weight - deep base: | About 355g |
| Weight - shallow base: | About 327.2g |
