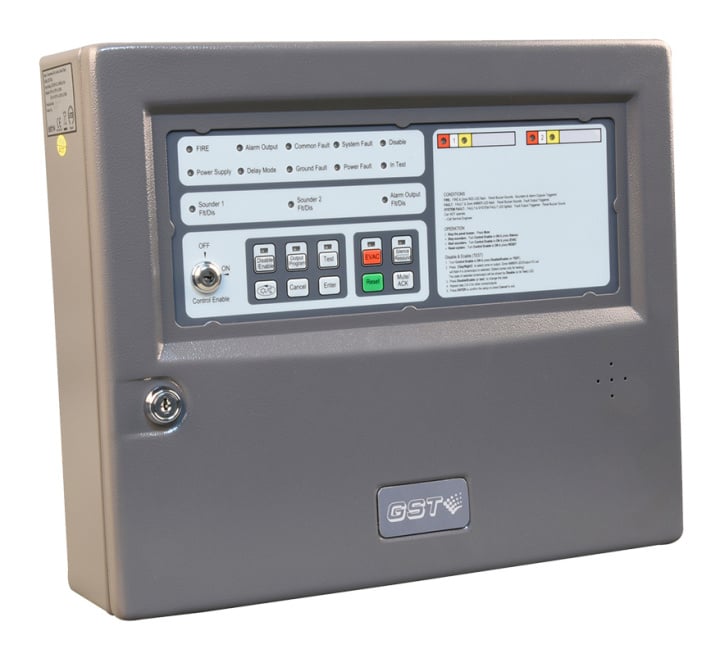

GST Conventional 2 Zone Fire Alarm Panel (GST102A)
SKU
GST102A
£151.02 £125.85
GST Conventional 2 Zone Fire Alarm Panel (GST102A)
The GST102A is compatible with GST conventional detectors, manual call points and sounders. The panel is easy to install and operate. Control functions are enabled by key switch whilst programming functions are enabled by key switch in combination with an internal switch.
The GST102A may be wall or flush-mounted.
| Key Features |
|---|
| > 2 Detection zones > Each zone can support up to 15 conventional detectors or 32 manual call points, to a combined total of 32 devices. > Short and open circuit reporting of detection zones, sounder and alarm outputs > Space provided inside the CIE cabinet for 2 SLA batteries for standby support > Easy enable/disable operation for zones, sounder and alarm outputs > Alarm test function selectable with or without sounder notification > Programmable output for linking zones and sounder outputs, alert or evacuate tone, with or without delay > Day/Night mode selectable > Silence/Reset/Test modes selectable to local requirements > Three access levels configurable via key control > Reserved multi-zone repeater interface for fire alarm indications |
| Manufacturer | GST |
|---|---|
| MPN | GST102A |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| General | |
|---|---|
| Connectivity | Hardwired repeater |
| Maximum system capacity (device count) | up to 64 |
| Cable rating | 0.5 mm (max) |
| Electrical | |
| Power supply type | 220/230 VAC |
| Variation | +10%/-15% |
| Frequency | 50/60Hz |
| Loop | |
| Maximum loop capacity | 2 |
| Zone | |
| Maximum zone capacity | up to 2 |
| Quantity of devices per zone | 15 detectors / 32 MCPs |
| Cable rating | 1.0 mm² to 1.5 mm² (1000 m max) |
| End-of-line | Active |
| Passive (4.7 kΩ, ½W) | |
| Input | |
| Input quantity | 4 |
| Input type and rating | Unsupervised NO |
| Programmable | No |
| Cable rating | 0.5 mm² (min) |
| Output | |
| Fire alarm signalling | 1, 300 mA @ 24 VDC or NO/NC |
| Fault signalling | 1, NO/COM/NC, 1 A @ 24 VDC |
| Notification | 2, 300 mA @ 24 VDC or NO/NC |
| Auxilliary power | < 500 mA @ 24 VDC |
| Programmable | Yes |
| Cable rating | 1.0 mm² to 1.5 mm² (1000 m max) |
| Standby battery | |
| Capacity | 7 Ah |
| Batteries supported in housing | 2 x 12 VDC |
| Physical | |
| Form factor | Small |
| Physical dimensions | 380 x 320 x 103 mm (W x H x D) |
| Colour | Black |
| Mounting type | Surface mount, Wall mount |
| Environmental | |
| Vandal proof | No |
| Operating temperature | 0 to 40°C |
| Relative humidity | 0 to 95% noncondensing |
| Environment | Indoor |
| IP rating | IP30 |
| Regulatory | |
| Compliancy | CE |
| Certification | EN54-2, EN54-4 |
| Standards | LPCB |
