GST Active EOL Unit for DC Series Devices (DP-9907)
SKU
DP-9907
£7.14 £5.95

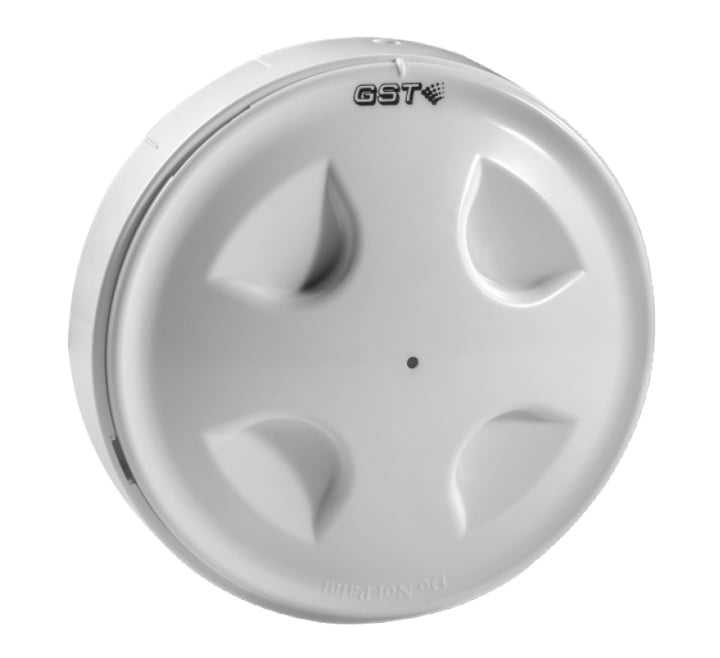

GST DP-9907 Innovation Active End of Line Unit
Matching with a conventional fire alarm control panel or addressable zone monitor unit, the DP-9907 Active End of Line Unit (AEOL) takes the place of the traditional end-of-line resister (EOLR). When used in combination with the diode detector bases it allows for detector head removal fault monitoring on the fire control panel.
| Key Features |
|---|
| > Enables head removal monitoring > Can be used as a detector base to save installation cost > Can be used alone with a cover > Build a reliable conventional zone connection |
| Manufacturer | GST |
|---|---|
| MPN | DP-9907 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Operating Voltage: | 24VDC |
| Operating Current: | ≤5mA |
| Wiring: | 2-core, polarized |
| Ingress Protection Rating: | IP33 |
| Operating Temperature: | -10°C ~ +50°C |
| Relative Humidity: | ≤95%, non-condensing |
| Enclosure: | ABS, White (RAL 9016) |
| Dimension (D×H): | φ100mm×39mm |
| Weight: | About 105g |
