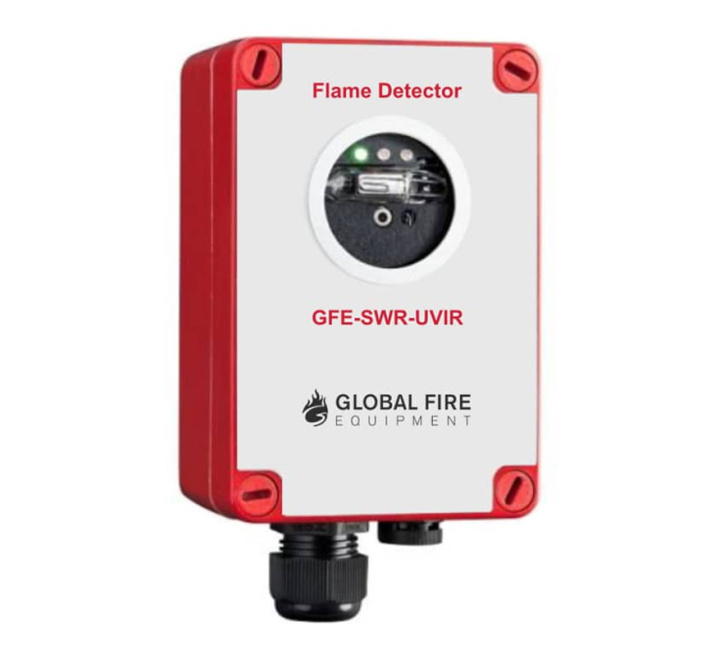

Global Fire Sense-Ware UV/IR Flame Detector (GFE-SWR-UVIR)
SKU
GFE-SWR-UVIR
£1,741.57
£1,451.31
Global Fire Sense-Ware UV/IR Flame Detector (GFE-SWR-UVIR)
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for Global Fire Sense-Ware UV/IR Flame Detector (GFE-SWR-UVIR)
The Global Fire GFE-SWR-UVIR flame detector uses a combination of UV and IR sensors, it uses an additional alarm criterion: the analysis of the flame flicker frequency. The UV and IR sensor must both exceed their alarm threshold to initiate a fire alarm. The GFE-SWR-UVIR flame detector has a good false alarms immunity since the UV and IR sensor do not share false alarm sources.
The GFE-SWR flame detector range from Global Fire Equipment utilises a microprocessor for sophisticated electronic signal analysis. Its advanced discrimination technology and rugged construction makes it suitable for almost all installations scenarios.
Key Features of the GFE-SWR-UVIR |
|---|
|
> Combination of UV and IR detections
> Additional alarm - analysis of flame flicker frequency > UV and IR sensor must both exceed their alarm threshold to trigger a fire alarm > UV and IR sensor do not share false alarm sources > Resistant to artificial and sunlight > Relay output for Alarm and Fault conditions > CPR/EN54-10 certified > ATEX zone 2/22 certified > FM3260 & 3611 Approvals > Rugged sensors make the detector suitable for virtually all fire types > Sophisticated software enhances the reliability and availability of the detector > Design of the housing and swivel mount avoid mounting errors in respect of grounding > Automatic Sensor Test (Built-in Self-Test) enhances the reliability and availability of the flame detector > Pressure Compensating Element avoids additional cost of maintenance caused by moisture build up and increases the life time |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | GFE-SWR-UVIR |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Ultraviolet/Infrared (UV/IR) |
| Detectable Medium | Flame |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Global Fire Sense-Ware UV/IR Flame Detector (GFE-SWR-UVIR)
No questions yet. Be the first to ask the question!
Product Specification for Global Fire Sense-Ware UV/IR Flame Detector (GFE-SWR-UVIR)
| Product code: | GFE-SWR-UVIR |
| Dimensions: | 125 x 80 x 57mm |
| Power: |
12-24V DC (10-28V DC) |
| Current normal: |
25 mA at 24V DC |
| Current in alarm (24 DC): |
+/- 75 mA at 24V DC |
| Startup time: |
<10 sec |
| Alarm output setting: |
Selectable LEDs & relays latching / non latching, factory setting: latching |
| Relay outputs / alarm relay: |
De-energized during normal operation, no alarm, SPDT, 30V DC - 2A, 60W max |
| Relay outputs / fault relay: |
Energized during normal operation, no fault SPDT, 30V DC - 2A, 60W max |
| Current output: | Standard available 0-20 mA (stepped sinking, non-isolated) |
| Alarm response time: | <8 sec |
| Cone of vision: | 90o minimum |
| Housing: | Glass reinforced polyester (GRP), lid screw tightening torque 2nm minimum |
| Ingress protection: | IP65 |
| Operating temp: | -40oC to 70oC |
| Ambient temp: | ATEX and FM class 3611:-25oC to 70oC |
| Automatic & manual self-test: | Automatic sensor test (built-in self test) and manual self-test |
| Detection: | 17m (n-heptane; 33x33cm) 25m (alcohol; 50x50cm) |
| Colour: | Red and White |
| Cable gland: | M20 (cable conduit dia. 5.5-13mm, two steps 5.5-8mm and 8-13mm) |
| Pressure compensating element: | PCE (Pressure Compensating Element) avoids moisture build up in the detector housing, caused by pressure differences as a consequence of temperature fluctuations |
| Terminals: | Suitable for massive cores 0.5 to 1.5mm2 (24 to 16 AWG), tightening torque 0.4 Nm minimum |
| Weight: | 465g |
| (Optional) GFE-SWR-BKT material: | PA66; 316SS nuts and bolts |
| (Optional) GFE-SWR-BKT weight: | 280g |
