Global Fire ZEOS Conventional Optical Smoke Detector (ZEOS-C-S)
SKU
ZEOS-C-S
£12.46
£10.38
Global Fire ZEOS Conventional Optical Smoke Detector (ZEOS-C-S)
- Buy 10 for £12.26 £10.22 each and save 2%
- Buy 20 for £11.88 £9.90 each and save 5%
In Stock
Product Details for Global Fire ZEOS Conventional Optical Smoke Detector (ZEOS-C-S)

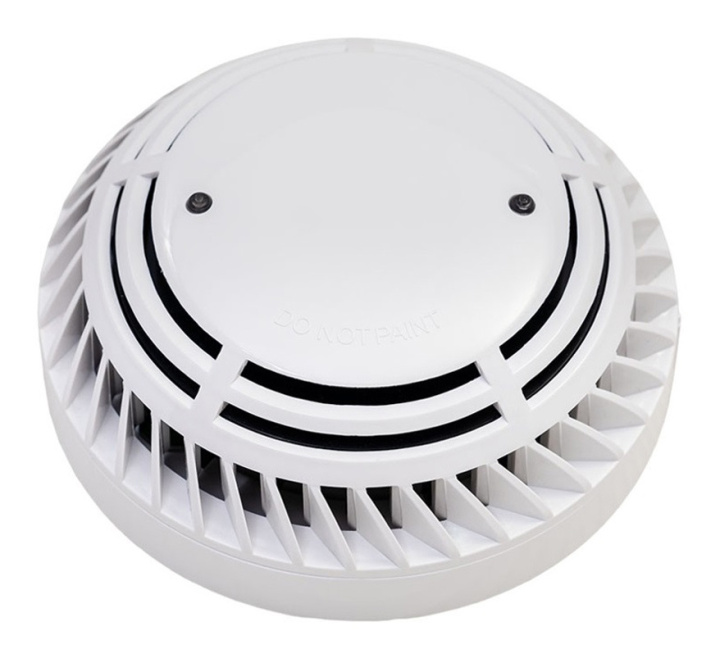

The Global Fire ZEOS-C-S is a conventional optical smoke detector. Mounting bases sold separately.
The ZEOS-C series of fire alarm detectors has been designed to be exclusively compatible with the GFE's range of conventional detection zones available in the following equipment:
- Conventional Panels , ORION MINI, ORION EX and ORION-PLUS
- Addressable Zone Monitoring Units QUAD-ZMU and ZMU
Certified to EN54-5 and EN54-7, the ZEOS-C series detectors are available in smoke, heat and combined smoke/heat detector versions.
Key Features of the ZEOS-C-S |
|---|
|
> Optical smoke detector
> Conventional fire systems > EN54 certified |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | ZEOS-C-S |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Optical |
| Detectable Medium | Smoke |
| Colour | White |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Global Fire ZEOS Conventional Optical Smoke Detector (ZEOS-C-S)
No questions yet. Be the first to ask the question!
Product Specification for Global Fire ZEOS Conventional Optical Smoke Detector (ZEOS-C-S)
| SUPPLY VOLTAGE | 10-30 V DC |
| CURRENT – QUIESCENT | 33 uA |
| CURRENT – DEVICE IN ALARM | 24 mA – Alarm LEDs |
| SENSITIVITY | According to EN54-5 or/and EN54-7 |
| CABLE SIZE | 0.5-2.5 mm² |
| RESET/START-UP TIMES | 20 seconds max |
| COLOUR | White |
| CASE MATERIAL | ABS |
| MAX. HUMIDITY | 95% RH Non-Condensing |
| OPERATING TEMPERATURE (NORMAL) | 0ºC to 50ºC |
| OPERATING TEMPERATURE (TRANSIENT) | -10ºC to 85ºC |
| DIMENSIONS | 100 mm (D) x 50 mm (H) |
| WEIGHT | 144 g inc. base |
| COMPATIBILITY | ORION, ORION MINI, ORION EX, ORION-PLUS, QUAD ZMU and ZMU |
