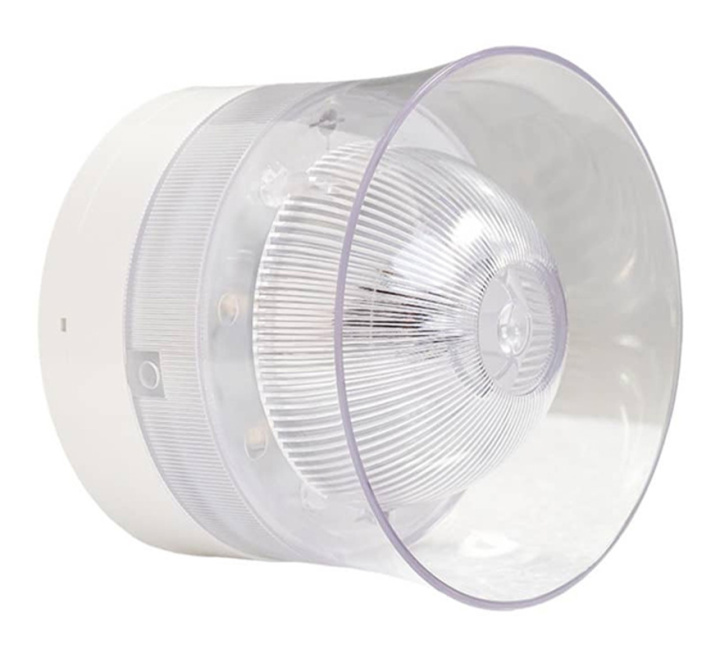

Global Fire VALKYRIE CSB Conventional Wall Sounder Beacon (White) (VALKYRIE-CSB-WHT)
SKU
VALKYRIE-CSB(WHT)
£37.40
£31.17
Global Fire VALKYRIE CSB Conventional Wall Sounder Beacon (White) (VALKYRIE-CSB-WHT)
- Buy 10 for £36.83 £30.69 each and save 2%
- Buy 20 for £35.68 £29.73 each and save 5%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Global Fire VALKYRIE CSB Conventional Wall Sounder Beacon (White) (VALKYRIE-CSB-WHT)
The Global Fire VALKYRIE CSB WHT is a white wall mounted Conventional Sounder and Beacon (VID) device with low power consumption. Four different tones are available and selected using DIL switches 1 and 2. Both continuous and pulsing outputs are provided via separate negative supply connections allowing for the presence of differentiated evacuation and alert sounds.
Key Features of the VALKYRIE-CSB(WHT) |
|---|
|
> White conventional wall-mounted sounder and VID
> 4 different tones selectable using DIL switches > Continuous and pulsing outputs are provided by separate negative supply connections |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | VALKYRIE-CSB(WHT) |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Colour | White |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Global Fire VALKYRIE CSB Conventional Wall Sounder Beacon (White) (VALKYRIE-CSB-WHT)
No questions yet. Be the first to ask the question!
Product Specification for Global Fire VALKYRIE CSB Conventional Wall Sounder Beacon (White) (VALKYRIE-CSB-WHT)
| SUPPLY VOLTAGE | 20 V to 30 V DC |
| CURRENT – SOUNDER/ BEACON ACTIVE | 10 mA – 280 mW @ 28 V DC |
| MAXIMUM SOUNDER OUTPUT | 97 dB (@ 1 meter – 30 V DC) |
| MAX. CABLE SIZE | 2.5 mm² |
| OPERATING TEMPERATURE | -10ºC to 55ºC |
| MAX. HUMIDITY | 95% RH Non-Condensing |
| CASE MATERIAL | ABS and PC |
| COLOUR | Red or White |
| PROTECTION CATEGORY | IP21C – Type A – Indoor use |
| DIMENSIONS | 110 (D) x 85 (H) mm inc. base |
| WEIGHT | 254 g – inc. mounting base |
