Global Fire VALKYRIE CSB IP65 Conventional Wall Sounder Beacon (Red) (VALKYRIE-CSB-IP65)
SKU
VALKYRIE-CSB-IP65
£48.91
£40.76
Global Fire VALKYRIE CSB IP65 Conventional Wall Sounder Beacon (Red) (VALKYRIE-CSB-IP65)
- Buy 10 for £48.16 £40.13 each and save 2%
- Buy 20 for £46.66 £38.88 each and save 5%
In Stock
Product Details for Global Fire VALKYRIE CSB IP65 Conventional Wall Sounder Beacon (Red) (VALKYRIE-CSB-IP65)

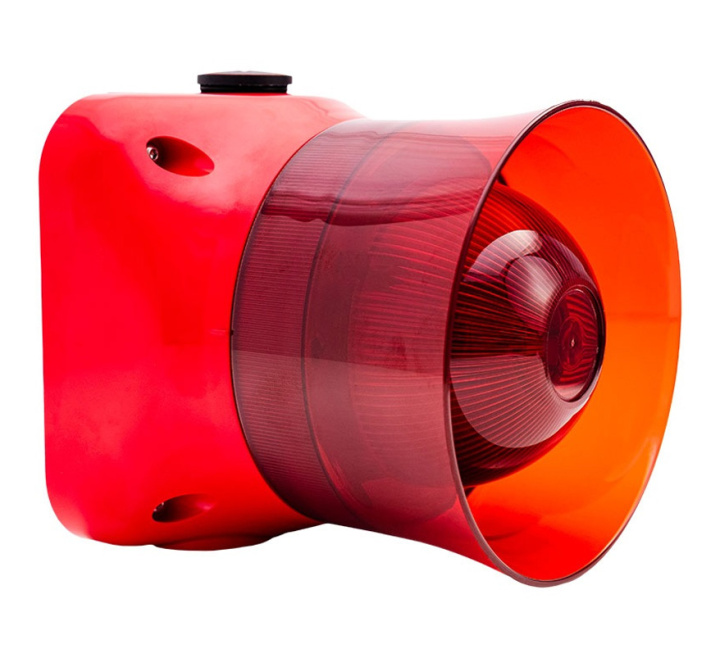

The Global Fire VALKYRIE CSB IP65 is a red wall mounted Conventional Sounder and Beacon (VID) device with low power consumption and an IP65 rated housing. It is specifically designed to be used outdoors. Four different tones are available and selected using DIL switches 1 and 2. Both continuous and pulsing outputs are provided via separate negative supply connections allowing for the presence of differentiated evacuation and alert sounds.
Key Features of the VALKYRIE-CSB-IP65 |
|---|
|
> Red conventional wall-mounted sounder and beacon (VID)
> IP65 rated housing - specifically designed for use outdoors > 4 different tones selectable using DIL switches > Continuous and pulsing outputs are provided by separate negative supply connections |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | VALKYRIE-CSB-IP65 |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Colour | Red |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Global Fire VALKYRIE CSB IP65 Conventional Wall Sounder Beacon (Red) (VALKYRIE-CSB-IP65)
No questions yet. Be the first to ask the question!
Product Specification for Global Fire VALKYRIE CSB IP65 Conventional Wall Sounder Beacon (Red) (VALKYRIE-CSB-IP65)
| SUPPLY VOLTAGE | 20 V to 30 V DC |
| CURRENT – SOUNDER/ BEACON ACTIVE | 10 mA – 280 mW @ 28 V DC |
| MAXIMUM SOUNDER OUTPUT | 97 dB (@ 1 meter – 30 V DC) |
| MAX. CABLE SIZE | 2.5 mm² |
| OPERATING TEMPERATURE | -20ºC to 70ºC |
| MAX. HUMIDITY | 95% RH Non-Condensing |
| CASE MATERIAL | ABS and PC |
| COLOUR | Red |
| PROTECTION CATEGORY | IP65 – Type B – Outdoor use |
| DIMENSIONS | 112 (D) x 110 (H) mm inc. base |
| WEIGHT | 315 g / 350 g – including packaging |
