Global Fire VALKYRIE AS Addressable Wall Mount Sounder (Black) (VALKYRIE-AS-BLK)
SKU
VALKYRIE-AS(BLK)
£52.20
£43.50
Global Fire VALKYRIE AS Addressable Wall Mount Sounder (Black) (VALKYRIE-AS-BLK)
- Buy 10 for £51.40 £42.83 each and save 2%
- Buy 20 for £49.79 £41.49 each and save 5%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Global Fire VALKYRIE AS Addressable Wall Mount Sounder (Black) (VALKYRIE-AS-BLK)

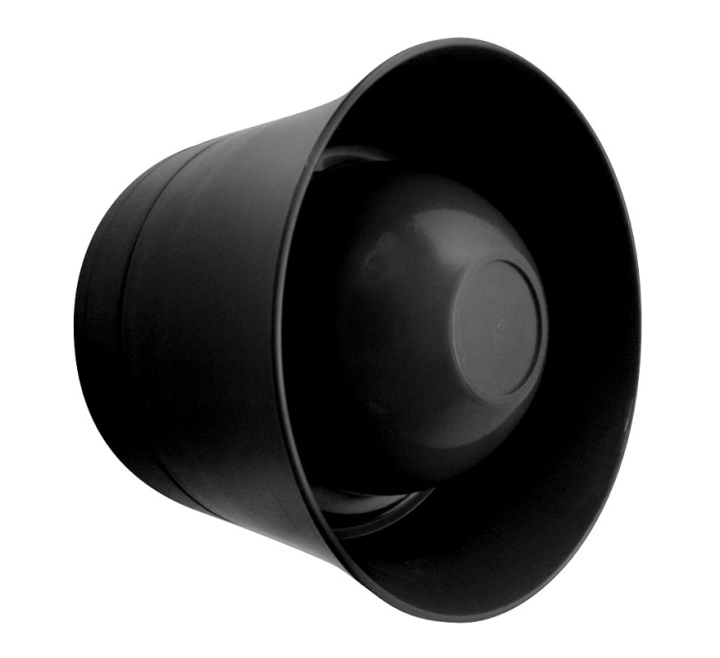

The Global Fire VALKYRIE-AS(BLK) is a black wall-mounted addressable sounder with low power consumption. Up to 32 individually addressed sounders can be installed per loop, using the address range 94 to 125.
When individual address reporting is not required, VALKYRIE AS can be configured as a shadow sounder so the sounders don’t occupy an address in the loop and therefore free up addresses for more detection devices. Shadow sounders do not report back to the control panel so their presence on the loop is not monitored. Shadow sounders draw current from the loop (10 mA in alarm) and must be included in loop load calculations
Key Features of the VALKYRIE-AS(BLK) |
|---|
|
> Wall mounted
> Black Addressable Sounder > Low power consumption > Up to 32 individually addressed sounders per loop (occupying address 94-125) > Address is set using switches 1 - 5 of the 8-way DIL switch > 4 selectable tones > Can be configured as a shadow sounder (shadow sounders do not report back to the control panel - current drawn from the loop - 10 mA in alarm - and must be included in loop load calcs) |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | VALKYRIE-AS(BLK) |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | GFE ZEOS |
| Colour | Black |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Global Fire VALKYRIE AS Addressable Wall Mount Sounder (Black) (VALKYRIE-AS-BLK)
No questions yet. Be the first to ask the question!
Product Specification for Global Fire VALKYRIE AS Addressable Wall Mount Sounder (Black) (VALKYRIE-AS-BLK)
| Product code: | VALKYRIE-AS(BLK) |
| Dimensions: |
D: 110mm x H:85mm (incl. base) |
| Supply voltage: |
Loop powered - 20V to 30V DC |
| Loop Current - Quiescent: |
550 uA max. with isolator |
| Loop current - Sounder/Beacon active: | 10mA - 280W @ 28V DC, isolator incl. |
| Max. sounder output: | 100 dB (@ 1 meter - 30V DC) |
| Reset/start-up times: |
20 seconds max. |
| Protection category: | IP21C - Type A - Indoor use |
| Operation temperature: | -10oC to +55oC |
| Max. cable size: | 0.5 - 2.5mm2 |
| Max. humidity: | 95% RH Non-Condensing |
| Colour / case material: | Black / ABS & PC |
| Weight: | 254g incl. base, 304g incl. packaging |
