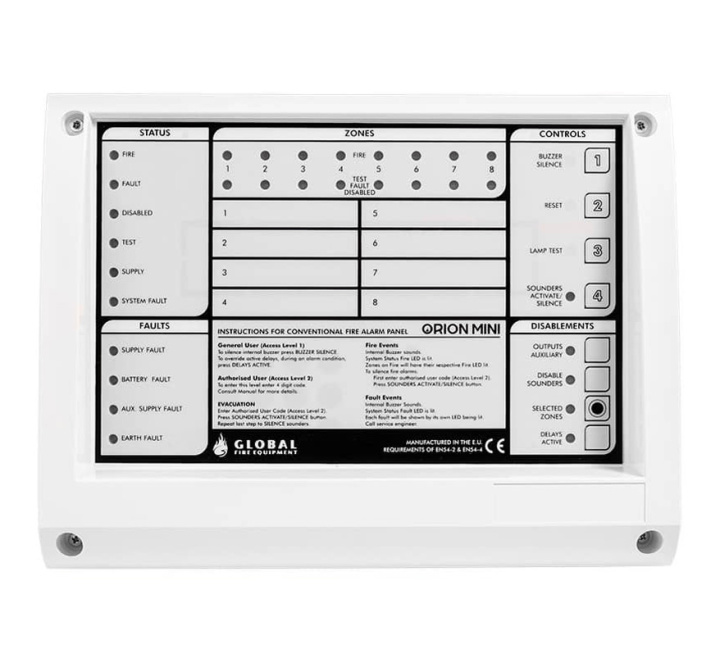

Global Fire ORION Repeater Panel c/w Network Card (ORION-REP)
- Buy 10 for £117.07 £97.56 each and save 2%
- Buy 20 for £113.41 £94.51 each and save 5%
Product Details for Global Fire ORION Repeater Panel c/w Network Card (ORION-REP)
The Global Fire ORION MINI-REP will provide remote control and system display status from multiple locations to an ORION based Fire Alarm System. All Fire, Fault, Test and Disabled conditions are displayed. User is able to control all functions at Access Levels 1 and 2. Access to Level 2 is via the same four digit code used on the ORION V2. Its reduced dimensions make it ideal for installation in reception areas or security booths where it would be impractical and unattractive to install a full size control panel. This repeater panel can be connected to the Main Panel using 4 different communication technologies: RS232, RS485, Fiber Optics and TCP/IP.
The unit is provided as standard with an RS232 interface. Power for the ORION MINI-REP V2 can be supplied from the control panel’s auxiliary power output or an external 24 Volt DC power supply if required.
Key Features of the ORION-REP |
|---|
|
> Supplied with an RS232 Interface (Network Communication Card - ORION-INT-RS232)
|
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | ORION-REP |
| Primary Power Source | Mains Powered (230V) |
| System Type | Conventional |
| Warranty | 10 Years |
FAQ’s for Global Fire ORION Repeater Panel c/w Network Card (ORION-REP)
Product Specification for Global Fire ORION Repeater Panel c/w Network Card (ORION-REP)
| SUPPLY VOLTAGE | (21-29V DC) 24V DC nominal |
| SUPPLY CURRENT | 40 mA |
| CONNECTIONS | Supply: +/- ; Communication: Tx/Rx & GND |
| REPEATER NETWORK | RS-232, RS-485, FO or TCP/IP * – 1 Display & Control + 3 Display Only |
| PANEL COMPATIBILITY | ORION |
| MAX. HUMIDITY | 95% RH Non-Condensing |
| OPERATING TEMPERATURE | -10ºC to 50ºC |
| COLOUR / CASE MATERIAL | White ABS |
| WEIGHT | 1.4 Kg |
| DIMENSIONS | 256 (L) x 194 (W) x 75 (H) mm |
