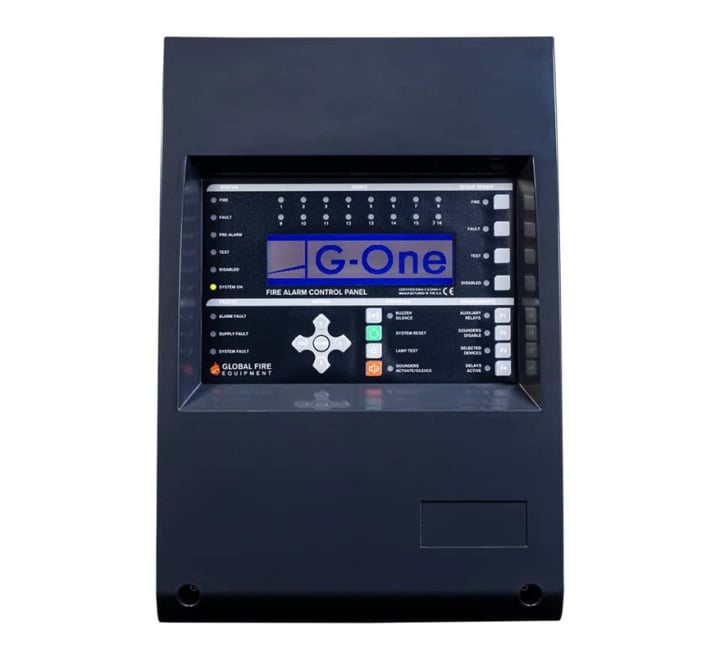

Global Fire G-ONE 1 Loop Fire Control Panel - Non Expandable (Black) (G-1BLK)
Product Details for Global Fire G-ONE 1 Loop Fire Control Panel - Non Expandable (Black) (G-1BLK)
The G-One from Global Fire is a versatile addressable single-loop fire control panel with advanced connectivity and is fully CPR certified to EN54-2 and EN54-4.
Designed with affordability and flexibility in mind, the G-One combines sophisticated design with easy installation and intuitive commissioning, making it the ideal solution for a wide range of single-loop applications, from offices and restaurants to shops, schools and more.
The G-One incorporates sophisticated Chameleon peer-to-peer multi-master network communications and powerful cause-and-effect programming capability. It can be networked with up to 32 fire control panels from the GFE range and has a high-integrity digital protocol for resilient high-speed monitoring and data communication with up to 250 devices on a single loop. Easy to install, programme and operate, the G-One can be either surface or recessed mounted.
A unique installer-friendly dynamic, automatic self-learn facility bypasses the traditional manually initiated auto-learn process. Other features include a unique high-resolution back-lit blue graphical LCD display, which ensures a clear and effective user interface. The G-One is fully compatible with all GFE-manufactured digital analogue-addressable loop devices and its menu structure is identical to existing GFE panels, ensuring familiarity and ease of operation for users.
Key Features of the G-1(BLK) |
|---|
|
> 900mA single loop (digital communication) addressable fire alarm control panel
> Can network up to 32 G-One, GEKKO, OCTO+ and NODE+ panels > Connection to repeater panels via RS422, Fibre-Optic or TCP/IP > 250 devices per loop (125 address limit) > Up to 95 VULCAN 2 (addressable) ultra-low current base sounders (32 address limit) per loop > 32 individually programmable sounder addresses > Self-Addressing device support > 2 Fire output relays (change-over) plus 1 Fault relay (NC) > 2 Non-addressable (conventional) alarm outputs (individually programmable) > High integrity loop communication / device monitoring > 384 programmable network zones > 512 programmable alarm (sounder) groups > 512 I/O groups > 10,000 events log > Compatible with ZEOS, GFE and Apollo digital analogue addressable protocols > Compatible with all GFE manufactured digital addressable ancillary modules > High resolution, high contrast backlit blue graphical LCD display (240x64 pixels) > Programming by integrated tactile keypad or USB Loader PC software > Multiple menu selectable language support > 16 integrated programmable fire zone LEDs > SMS and EMAIL notifications by means of TCP IP-WEB interface > Installer friendly automatic self-learn facility > CPR Certified to EN54-2 and EN54-4 |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | G-ONE BLK |
| Primary Power Source | Mains Powered (230V) |
| System Type | Addressable |
| Number of Loops (Fitted) | 1 |
| Number of Zones | 384 |
| Protocol Compatibility | Apollo XP95, Apollo Discovery, GFE ZEOS |
| Colour | Black |
| Warranty | 10 Years |
FAQ’s for Global Fire G-ONE 1 Loop Fire Control Panel - Non Expandable (Black) (G-1BLK)
Product Specification for Global Fire G-ONE 1 Loop Fire Control Panel - Non Expandable (Black) (G-1BLK)
| Product Code: | G-ONE |
| Product description: | G-ONE 1 Loop Control Panel - Non Expandable |
| Dimensions: | W:273mm x H:404mm x D:107mm |
| Enclosure: | White (RAL 9003), Red (RAL3001) or Anthracite (RAL 7016) |
| Mains supply rating: |
90V AC to 230V AC |
| Primary DC supply: |
28.5V DC @ 2.4A (max) |
| Secondary supply: |
21.6 (min.) - 27.2V (max) - Battery charger 27.5V DC |
| Battery Max. Capacity: (Internal) |
2 x 12V 7Ah |
| Quiescent current: (no devices) |
52mA |
| Aux Power Output: |
2 x 24V DC 300mA / 1 x 24V switched output |
| Max. Loop output current: |
1 loop - 900mA alarm peak / 165mA quiescent |
| Loop topology: |
Class A (loop) or Class B (radial) |
| Loop cable: |
Fire resistant 2 x 1.5mm (max 1200m) or 2 x 2.5mm (max 2000m) |
| Conventional sounder circuits: |
500mA for conventional sounder circuits a+b |
| Aux. Relays Fire: |
2 x rated 2A @ 30V DC resistive / 0.5A @ 120V AC resistive / 0.25A @ 240V AC resistive |
| Aux. Relay Fault: |
1 x rated 2A @ 30V DC resistive / 0.5A @ 120V AC resistive / 0.25A @ 240V AC resistive |
| Graphical LCD display: |
High definition, high contrast blue backlit 240 x 64 pixels |
| Communication channels: |
2 x configurable communication ports |
| BMS output: |
ODYSSEY (Graphical software), TCP IP-WEB (remote web monitoring), MODBUS RTU, ESPA 4.4.4 |
| Software connection: |
USB type B |
| Event log: | 10,000 events |
| Operating/storage temp: |
-10oC to 50oC |
| Humidity: | Max 85% RH Non-condensing |
| Ingress protection/material: |
IP30 / ABS |
