Global Fire Conventional Manual Call Point with Cover (Red) (GFE-MCPE-C)
SKU
GFE-MCPE-C
£10.69
£8.91
Global Fire Conventional Manual Call Point with Cover (Red) (GFE-MCPE-C)
- Buy 10 for £10.52 £8.77 each and save 2%
- Buy 20 for £10.20 £8.50 each and save 5%
In Stock
Product Details for Global Fire Conventional Manual Call Point with Cover (Red) (GFE-MCPE-C)

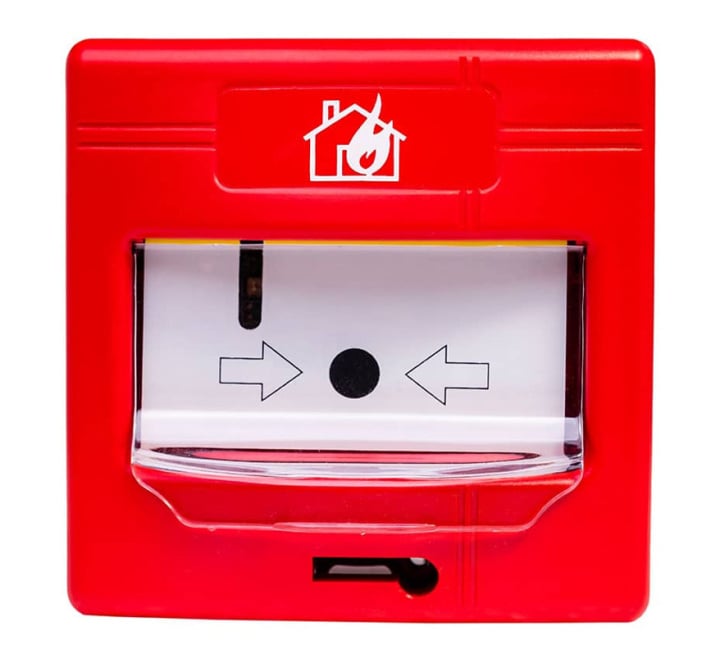

The Global Fire GFE-MCPE-C is a red Conventional Manual Call Point, designed and manufactured to comply with EN54-11, compatible with all GFE Conventional Control panels. A bi-colour LED flashes Green when the unit is connected to a control panel and is illuminated Red when in Alarm.
The unit is supplied complete with a hinged flap which protects the trigger element from accidental activation and reduces malicious activations as two actions are required in order to activate the device. This unit can be both surface and flush mounted and it can be easily reset using the supplied key after activation.
Key Features of the GFE-MCPE-C |
|---|
|
> Red conventional manual call point
> Supplied with protective cover and reset key > Can be surface or flush mounted > Bi-colour LED flashes green when connected to control panel and illuminates red in alarm state > Designed and manufactured to comply with EN54-11 > Compatible with all GFE conventional control panels |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | GFE-MCPE-C |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Global Fire Conventional Manual Call Point with Cover (Red) (GFE-MCPE-C)
No questions yet. Be the first to ask the question!
Product Specification for Global Fire Conventional Manual Call Point with Cover (Red) (GFE-MCPE-C)
| OPERATION VOLTAGE | 20-30 V DC |
| CURRENT CONSUMPTION – QUIESCENT | 200 uA |
| CURRENT CONSUMPTION – ALARM | 50 mA @ 24 V DC nominal – Alarm Resistance 470 Ohms max. |
| OPERATING TEMPERATURE | -10ºC to 55ºC |
| STORAGE TEMPERATURE | -30°C to +60°C |
| INGRESS PROTECTION GRADE | IP24D – Type A – Indoor Use |
| MAX. HUMIDITY | 95% RH Non-Condensing @ 40°C |
| COLOUR / CASE MATERIAL | Red / ABS & Clear/ PC – Flame Retardant – Rating 94V0 |
| DIMENSIONS – SURFACE MOUNTED | 92.6 (W) x 92.6 (H) x 60.1 mm |
| DIMENSIONS – FLUSH MOUNTED | 92.6 (W) x 92.6 (H) x 27.8 mm |
| WEIGHT | 152 g includes back box and fixings |
