Global Fire Conventional Manual Call Point w/ Cover - Blue
SKU
GFE-MCPE-C-BLUE
£14.75 £12.29
Global Fire Conventional Manual Call Point w/ Cover - Blue
- Buy 10 for £12.10 £10.08 each and save 18%
- Buy 20 for £11.90 £9.92 each and save 19%

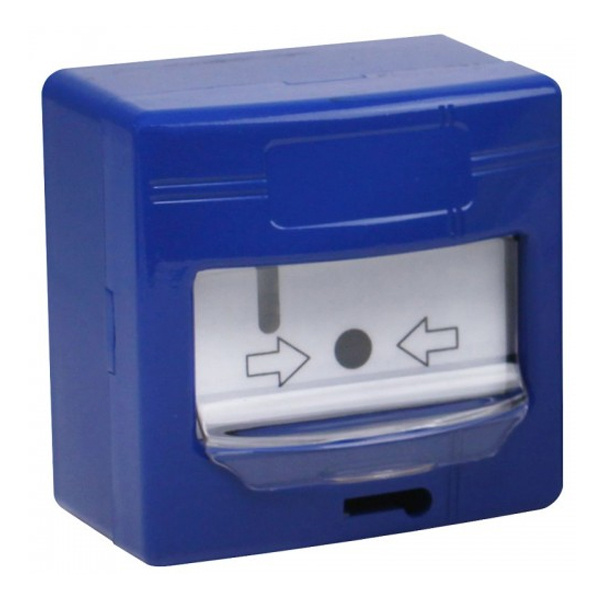

The Global Fire GFE-MCPE-C BLUE is a blue Conventional Manual Call Point, designed and manufactured to comply with EN54-11, compatible with all GFE Conventional Control panels. A bi-colour LED flashes Green when the unit is connected to a control panel and is illuminated Red when in Alarm.
The unit is supplied complete with a hinged flap which protects the trigger element from accidental activation and reduces malicious activations as two actions are required in order to activate the device. This unit can be both surface and flush mounted and it can be easily reset using the supplied key after activation.
| Key Features |
|---|
| > Blue conventional manual call point > Supplied with protective cover and reset key > Can be surface or flush mounted > Bi-colour LED flashes green when connected to control panel and illuminates red in alarm state > Designed and manufactured to comply with EN54-11 > Compatible with all GFE conventional control panels |
| Manufacturer | Global Fire Equipment |
|---|---|
| MPN | GFE-MCPE-C BLUE |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| OPERATION VOLTAGE | 20-30 V DC |
| CURRENT CONSUMPTION – QUIESCENT | 200 uA |
| CURRENT CONSUMPTION – ALARM | 50 mA @ 24 V DC nominal – Alarm Resistance 470 Ohms max. |
| OPERATING TEMPERATURE | -10ºC to 55ºC |
| STORAGE TEMPERATURE | -30°C to +60°C |
| INGRESS PROTECTION GRADE | IP24D – Type A – Indoor Use |
| MAX. HUMIDITY | 95% RH Non-Condensing @ 40°C |
| COLOUR / CASE MATERIAL | Blue / ABS & Clear/ PC – Flame Retardant – Rating 94V0 |
| DIMENSIONS – SURFACE MOUNTED | 92.6 (W) x 92.6 (H) x 60.1 mm |
| DIMENSIONS – FLUSH MOUNTED | 92.6 (W) x 92.6 (H) x 27.8 mm |
| WEIGHT | 152 g includes back box and fixings |
