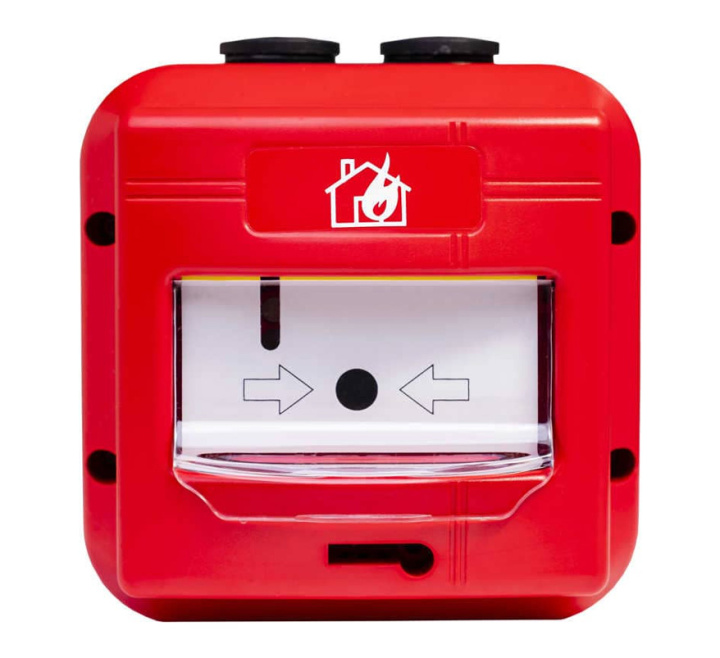

Global Fire Conventional IP67 Manual Call Point with Cover (Red) (GFE-MCPE-C-IP67)
- Buy 10 for £87.16 £72.63 each and save 2%
- Buy 20 for £84.43 £70.36 each and save 5%
In Stock
Product Details for Global Fire Conventional IP67 Manual Call Point with Cover (Red) (GFE-MCPE-C-IP67)
The Global Fire GFE-MCPE-C-IP67 is a red Conventional Manual Call Point, designed and manufactured to comply with EN54-11, compatible with all GFE Conventional Control panels specially recommended for outdoor use.
The unit is supplied complete with a hinged flap which protects the trigger element from accidental activation and reduces malicious activations as 2 actions are required in order to activate the device.
A bi-colour LED flashes Green when the unit is connected to a control panel and is illuminated Red when in Alarm. The GFE-MCPE-C-IP67 has been designed to deal with today’s difficult and harsh environments. It is a unique fire alarm manual call point that mimics the feel of breaking glass whilst offering the user the benefits and safety advantages of a glass-free resettable operating element. Once activated a warning flag drops in to view easily identifying the call point that has been operated. A key can then reset the unit.
The GFE-MCPE-C-IP67 provides an ideal solution for most conventional fire alarm systems. Ideal for all outside applications such as oil rigs, ships, factories as well as wash down areas that are sensitive to broken glass.
Key Features of the GFE-MCPE-C-IP67 |
|---|
|
> Red conventional manual call point
> IP67 ingress rated - ideal for harsh outdoor environments > Supplied with protective cover and reset key > Bi-colour LED flashes green when connected to control panel and illuminates red in alarm state > Designed and manufactured to comply with EN54-11 > Compatible with all GFE conventional control panels |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | GFE-MCPE-C-IP67 |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 10 Years |
FAQ’s for Global Fire Conventional IP67 Manual Call Point with Cover (Red) (GFE-MCPE-C-IP67)
Product Specification for Global Fire Conventional IP67 Manual Call Point with Cover (Red) (GFE-MCPE-C-IP67)
| OPERATION VOLTAGE | 20-30 V DC |
| CURRENT – QUIESCENT | 200 uA |
| ALARM | 50 mA @ 24V DC nominal – Alarm Resistance 470 Ohms max. |
| OPERATING TEMPERATURE | -10°C to +55°C |
| STORAGE TEMPERATURE | -30°C to +60°C |
| COLOUR / CASE MATERIAL | Red and others / ABS & Clear/ PC – Flame Retardant 94 V0 |
| PROTECTION | IP67 – Type A – Outdoor Use |
| MAX. HUMIDITY | 95% RH Non-Condensing @ 40°C |
| DIMENSIONS | 111.9 (H) x 111.9 (W) x 81.3 (D) mm |
| WEIGHT | 262 g includes back box and fixings |
