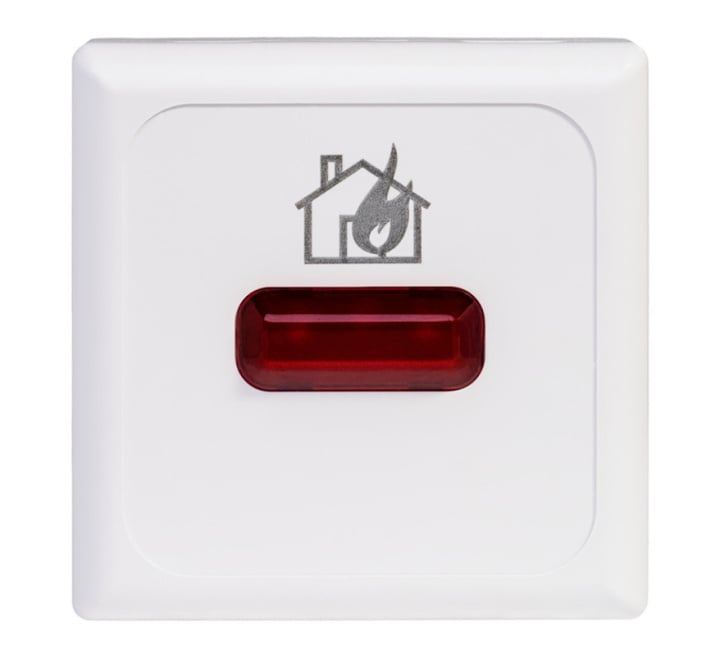

Global Fire Addressable Remote Indicator (GFE-A-REM-IND)
- Buy 10 for £21.08 £17.57 each and save 2%
- Buy 20 for £20.42 £17.02 each and save 5%
In Stock
Product Details for Global Fire Addressable Remote Indicator (GFE-A-REM-IND)
The Global Fire GFE-REM-IND-A is designed to provide discreet remote indication and is controlled by the addressable control panel, whilst providing the ability to monitor multiple sensors within a zone thereby minimising wiring requirements. The GFE-REM-IND-A is compatible with any of GFE’s analogue addressable panels.
The unit can be activated either by any of GFE’s analogue addressable fire detectors sharing the same loop address or alternatively by the panel’s cause and effect programming and, in this particular mode of operation, multiple detectors can be used to activate the device.
The GFE-REM-IND-A is supplied complete with a back box, enabling the device to be surface mounted. It will also fit on to a standard single gang box.
Key Features of the GFE-A-REM-IND |
|---|
|
> Provides discreet remote visual indication of a fire detector activating
> Controlled by the addressable fire control panel > Ability to monitor multiple sensors within an area > Can be activated by any GFE detector sharing the same loop address or via panel cause-and-effect programming > Compatible with all Global Fire addressable fire control panels > Supplied complete with a back box allowing for surface mounting (will also fit onto a standard single gang box) |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | GFE-A-REM-IND |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | GFE ZEOS |
| Colour | White |
| Warranty | 10 Years |
FAQ’s for Global Fire Addressable Remote Indicator (GFE-A-REM-IND)
Product Specification for Global Fire Addressable Remote Indicator (GFE-A-REM-IND)
| SUPPLY VOLTAGE | Loop Powered - 20V to 30V DC |
| LOOP CURRENT - REMOTE INDICATOR | 0.12 mA (Quiescent) - 2.5 mA (LED ON) |
| LOOP CURRENT - IO | 0.625 mA (Quiescent) - 2.5 mA (LED ON) |
| MAX. CABLE SIZE | 2.5 mm² |
| MATERIAL | ABS |
| COLOUR | White |
| IP RATING | IP40 |
| MAX. HUMIDITY | 95% RH Non-Condensing |
| OPERATING TEMPERATURE | -10ºC to 50ºC |
| DIMENSIONS | 86 (L) x 86 (W) x 25 (H) mm |
| WEIGHT | 60 g Boxed |
