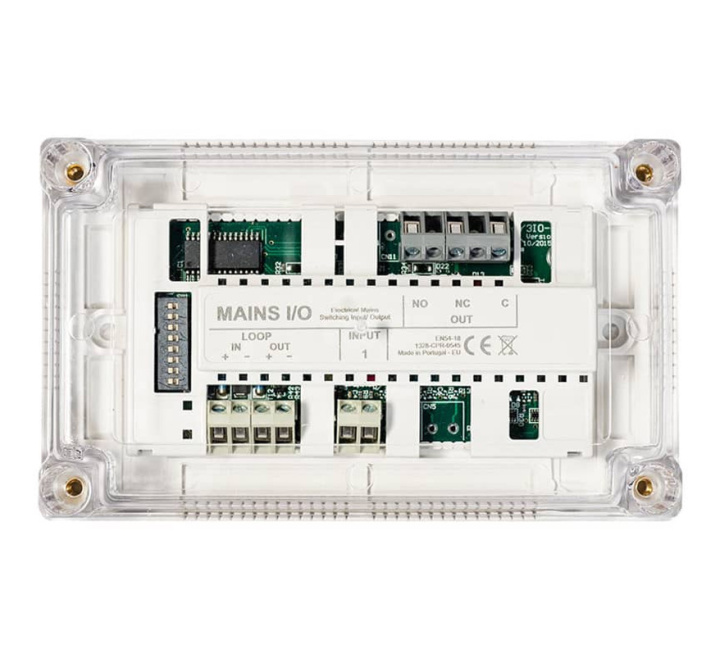

Global Fire Mains Switching Input/Output Module with Isolator (GFE-MIO)
- Buy 10 for £54.73 £45.61 each and save 2%
- Buy 20 for £53.03 £44.19 each and save 5%
Product Details for Global Fire Mains Switching Input/Output Module with Isolator (GFE-MIO)
The Global Fire MAINS I/O modules are fully monitored loop-powered devices which permit the interfacing of third-party equipment with the fire alarm control panel using normally open dry contact connections.
The connection to the input is monitored for fault (open or short circuit) and alarm conditions. The interface is used to monitor the contacts of an external system which must be interfaced to the fire alarm system, for example a flow switch in a sprinkler system to indicate if the sprinklers have been activated or extinguishant level monitoring in gas extinguishing systems, etc.
The Module is provided with a loop short-circuit isolator and with a voltage-free single-pole changeover mains rated output. The output relay is always powered directly from the detection loop. An external 24V DC power supply is not required. Relay operation is confirmed by an onboard red LED.
An 8 way D.I.L. switch is provided to configure the module’s address. This value can be set in the range 1 to 125.
The following programmable functions are available: Input Activation Mode, Delayed Input Alarm Activation, Output Delayed Activation.
Key Features of the GFE-MIO |
|---|
|
> Connection to input is monitored for fault (open or short circuit) and Alarm conditions
> Used to monitor contacts of an external system interfaced to the Fire Alarm System e.g. Flow Switch in a sprinkler system > Voltage free single pole change over mains rated output (powered directly from detection loop) > 8-way DIL switch is provided to configure the module's address (set in range 1 - 125) > Activation Mode, Delayed Input Alarm Activation and Output Delayed Activation programmable functions > Fast activation response > 5 Status LEDs > Module features an integral short-circuit loop isolator > Loop powered > Low power consumption |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | GFE-MIO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | GFE ZEOS |
| Colour | White |
| Warranty | 10 Years |
FAQ’s for Global Fire Mains Switching Input/Output Module with Isolator (GFE-MIO)
Product Specification for Global Fire Mains Switching Input/Output Module with Isolator (GFE-MIO)
| Product code: | GFE-MIO |
| Dimensions: |
W:150mm x L:90mm x H:32mm |
| Supply voltage: |
Loop powered - 17V to 30V DC |
| Loop current - Quiescent |
1.3 mA |
| Loop current - Alarm: |
2.9 mA |
| Loop current - Fault: |
2.9 mA (SC) - 2.6 mA (OC) |
| Loop current - Output Active |
2.8 mA |
| Output Relay Contact rating: |
8A 250 VAC/30V DC |
| Operation temperature: | -10oC to +50oC |
| Max. Cable size: | 2.5mm2 |
| Max. humidity: | 95% RH Non-Condensing |
| Case material: | ABS |
| Weight: | 210g - boxed |
