Global Fire Addressable Stand-Alone Loop Isolator (GFE-ADII)
SKU
GFE-ADII
£22.12
£18.43
Global Fire Addressable Stand-Alone Loop Isolator (GFE-ADII)
- Buy 10 for £21.78 £18.15 each and save 2%
- Buy 20 for £21.10 £17.58 each and save 5%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Global Fire Addressable Stand-Alone Loop Isolator (GFE-ADII)

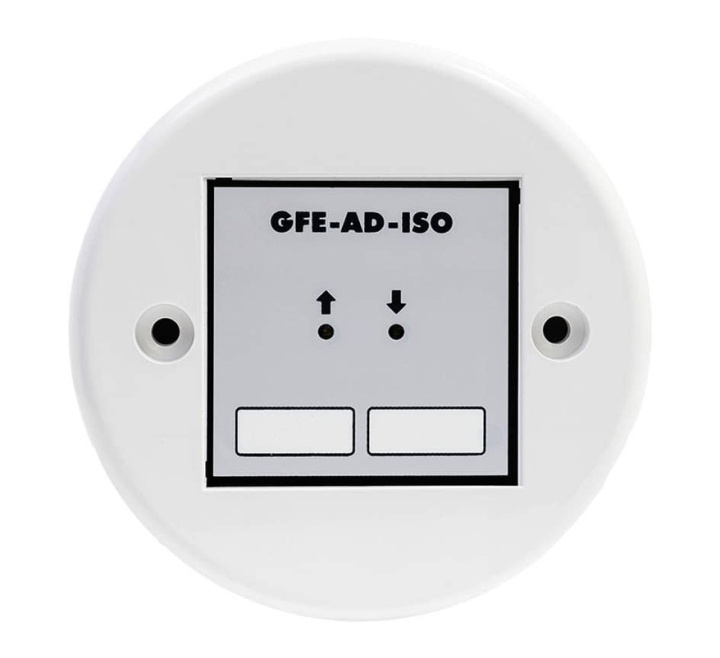

The Global Fire GFE-ADII (GFE-AD-ISO) is a standalone negative switching loop isolator designed to isolate short circuits on the addressable detection loop of all GFE addressable fire alarm control panels.
Up to 32 detection devices may be connected between two isolators as per EN54.
The GFE-AD-ISO is loop powered and polarity sensitive and care must be taken to follow the indications on the PCB. Also, as two LEDs are fitted to facilitate ‘Loop in’ and ‘Loop out’ identification, a consistent approach should be taken when wiring the isolator.
Key Features of the GFE-ADII |
|---|
|
> Isolates short circuits on addressable detection loop of all GFE addressable fire alarm control panels
> Up to 32 detection devices can be connected between 2 isolators as per EN54 > Loop powered > Polarity sensitive > 2 LEDS to facilitate 'Loop in' and 'loop out' identification |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | GFE-ADII |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | GFE ZEOS |
| Colour | White |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Global Fire Addressable Stand-Alone Loop Isolator (GFE-ADII)
No questions yet. Be the first to ask the question!
Product Specification for Global Fire Addressable Stand-Alone Loop Isolator (GFE-ADII)
| Product code: | GFE-AD-ISO |
| Dimensions: |
D:100.3mm x H:48mm |
| Loop operating voltage: |
0.25 mA @ 28V DC nominal |
| Loop current - Quiescent: |
0.25 mA @ 28 V DC nominal |
| Loop current - Isolated LED ON: |
6.2 mA @ 28V DC nominal |
| Max. Series impedance (Zcmax): |
28 mOhm |
| Max. leakage current (iLmax): | 2.7 mA |
| Max. rated switching current (Is max): | 1 A |
| Operation temperature: | -10oC to +50oC |
| Max. Cable size: | 0.5 - 2.5mm2 |
| Max. humidity: | 95% RH Non-Condensing |
| Colour/Case material: | White / ABS - Flame retardant rating 94V0 |
| Weight: | 105g - 142g incl. packaging |
