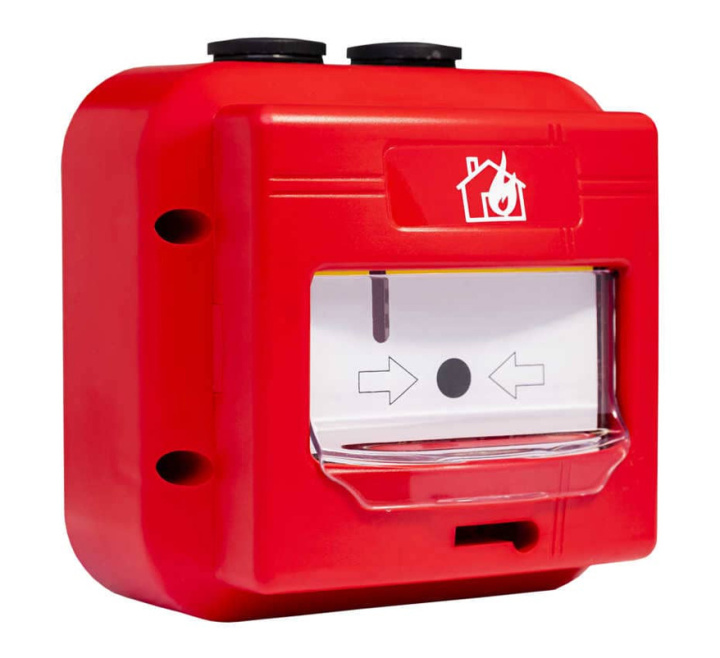

Global Fire Addressable IP67 Manual Call Point c/w Isolator & Cover (GFE-MCPE-AI-IP67)
- Buy 10 for £130.30 £108.58 each and save 2%
- Buy 20 for £126.23 £105.19 each and save 5%
Product Details for Global Fire Addressable IP67 Manual Call Point c/w Isolator & Cover (GFE-MCPE-AI-IP67)
The Global Fire GFE-MCPE-AI-IP67 is an Analogue Addressable Manual Call Point, designed and manufactured to comply with EN54-11, compatible with all GFE Addressable Control panels, specifically recommended for outdoor use.
With its enhanced communications mechanism, the typical response time, when in alarm, is approximately one second, depending on the number of call points connected to the device loop. The individual address, up to 125, of each call point is set via an eight way DIL switch. Each unit is supplied, as standard, with a loop short circuit isolator. A bi-colour LED flashes Green when the unit is interrogated by the control panel and is illuminated Red when in alarm.
The GFE-MCPE-AI-IP67 has been designed to deal with today’s difficult and harsh environments. It is a unique fire alarm manual call point that mimics the feel of breaking glass whilst offering the user the benefits and safety advantages of a glass-free resettable operating element. Once activated a warning flag drops in to view, easily identifying the call point that has been operated. A key can then reset the unit.
The GFE-MCPE-AI-IP67 provides an ideal solution for GFE’s addressable fire alarm systems. Ideal for all outdoor applications such as oil rigs, ships, factories as well as wash down areas that are sensitive to broken glass.
Key Features of the GFE-MCPE-AI-IP67 |
|---|
|
> Analogue Addressable Manual Call Point
> Compatible with all GFE Addressable Control panels > When in alarm, typical response time is approx. 1 second (depending on no. of call points connected to device loop) > LED flashes green when interrogated by control panel > LED flashes red when in alarm (commanded by the control panel) > Up to 125 individual addresses (set via 8-way DIL switch) > Mimics feel of breaking glass > Offers benefits and safety of a glass-free resettable operating element > IP67 weatherproof rating > Reset using the supplied key > Incorporates loop isolator > Supplied with protective hinged cover |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | GFE-MCPE-AI-IP67 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | GFE ZEOS |
| Colour | Red |
| Warranty | 10 Years |
FAQ’s for Global Fire Addressable IP67 Manual Call Point c/w Isolator & Cover (GFE-MCPE-AI-IP67)
Product Specification for Global Fire Addressable IP67 Manual Call Point c/w Isolator & Cover (GFE-MCPE-AI-IP67)
| Product code: | GFE-MCPE-AI-IP67 |
| Dimensions: |
W: 111.9mm x H:111.9mm x D:81.3mm |
| Operation voltage: |
20V to 30V DC |
| Current - Quiescent: |
650 uA |
| Current - Alarm: | 3.5mA |
| Operation temperature: | -10oC to +55oC |
| Storage temperature: | -30oC to +60oC |
| Protection: | IP67 - Type A - Outdoor Use |
| Cable size: | 0.5 - 1.5mm2 |
| Max. humidity: | 95% RH Non-Condensing @ 40oC |
| Colour/Case material: | Red / ABS & Clear / PC - Flame Retardant 94 V0 |
| Weight: | 262g includes back box and fixings |
| For EN54-13 compliance, please check the control panel manual specifications | |
