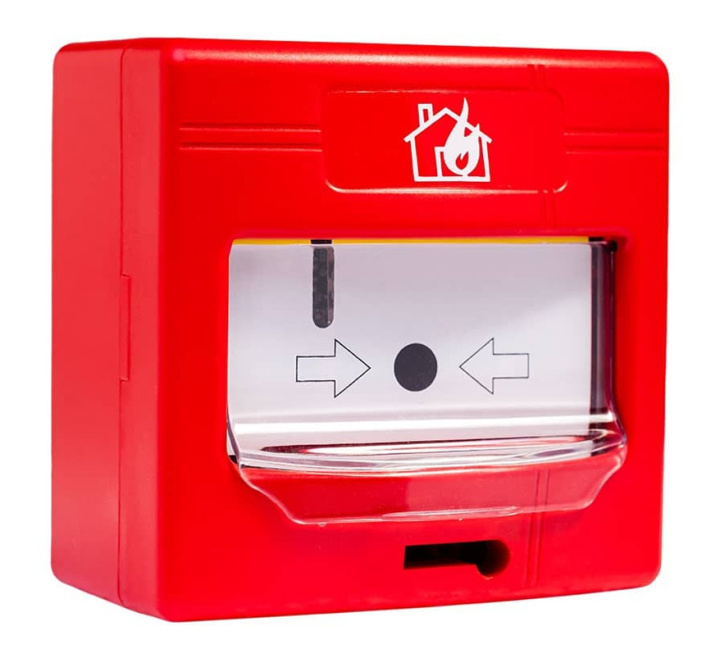

Global Fire Addressable Manual Call Point with Isolator & Cover (GFE-MCPE-AI)
- Buy 10 for £32.18 £26.82 each and save 2%
- Buy 20 for £31.19 £25.99 each and save 5%
In Stock
Product Details for Global Fire Addressable Manual Call Point with Isolator & Cover (GFE-MCPE-AI)
The Global Fire GFE-MCPE-AI is an analogue addressable Manual Call Point with loop isolator designed and manufactured to comply with EN54-11 and compatible with all GFE addressable control panels. With its enhanced communications mechanism, the typical response time when in alarm is approximately one second, depending on the number of call points connected to the device loop.
A bi-colour LED flashes Green when the unit is interrogated by the control panel and is illuminated Red when in Alarm. The command to illuminate the Red LED is emitted by the control panel in response to activation of the individual call point thus confirming that the Alarm signal has been received at the control panel. The individual address, up to 125, of each call point is set via an eight way DIL switch.
The unit is supplied complete with a hinged flap which protects the trigger element from accidental activation and reduces malicious activations as two actions are required in order to activate the device.
This unit can be both surface and flush mounted and it can be easily reset using the supplied key after activation.
Key Features of the GFE-MCPE-AI |
|---|
|
> Analogue Addressable Manual Call Point
> Compatible with all GFE Addressable Control panels > When in alarm, typical response time is approx. 1 second (depending on no. of call points connected to device loop) > LED flashes green when interrogated by control panel > LED flashes red when in alarm (commanded by the control panel) > Up to 125 individual addresses (set via 8-way DIL switch) > Supplied with hinged flap > Unit can be surface or flush mounted > Easily reset using the supplied key > Incorporates a loop isolator |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | GFE-MCPE-AI |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | GFE ZEOS |
| Colour | Red |
| Warranty | 10 Years |
FAQ’s for Global Fire Addressable Manual Call Point with Isolator & Cover (GFE-MCPE-AI)
Product Specification for Global Fire Addressable Manual Call Point with Isolator & Cover (GFE-MCPE-AI)
| Product code: | GFE-MCPE-AI |
| Dimensions: Surface mounted Flush mounted |
W: 92.6mm x H:92.6mm x D:60.1mm W: 92.6mm x H:92.6mm x D:27.8mm |
| Operation voltage: |
20V to 30V DC |
| Current - Quiescent: |
500 uA |
| Current - Alarm: | 3.5mA |
| Operation temperature: | -10oC to +55oC |
| Storage temperature: | -30oC to +60oC |
| Protection: | IP24D - Type A - Indoor Use |
| Cable size: | 0.5 - 1.5mm2 |
| Max. humidity: | 95% RH Non-Condensing @ 40oC |
| Colour/Case material: | Red / ABS & Clear / PC - Flame Retardant 94 V0 |
| Weight: | 152g includes back box and fixings |
| For EN54-13 compliance, please check the control panel manual specifications | |
