Global Fire Addressable 3-Channel Input/Output Module with Isolator (GFE-IO-3)
- Buy 10 for £73.20 £61.00 each and save 2%
- Buy 20 for £70.91 £59.09 each and save 5%
Product Details for Global Fire Addressable 3-Channel Input/Output Module with Isolator (GFE-IO-3)

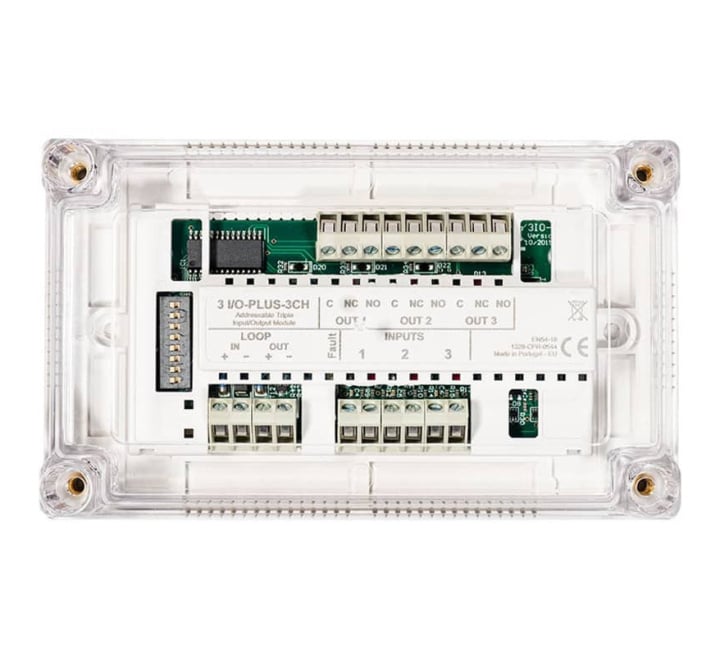

Global Fire Addressable 3-Channel Input/Output Module with Isolator (GFE-IO-3)
The Global Fire 3 I/O PLUS Modules are fully monitored loop powered devices which permit the interfacing of third-party equipment with the fire alarm control panel using normally open dry contact connections. Each module can be fitted with a maximum of three inputs and three outputs. The connection to each input is monitored for fault (open or short circuit) and alarm conditions.
The interface is used to monitor the contacts of an external system which must be interfaced to the fire alarm system, for example a flow switch in a sprinkler system to indicate if the sprinklers have been activated or extinguishant level monitoring in gas extinguishing systems, etc.
The module is provided with a loop short-circuit isolator and with up to 3 voltage free single pole change over relay outputs. The output relays are always powered directly from the detection loop. It is not required to use an external 24V DC power supply. Relay operation is confirmed by an onboard Red LED. A 8 way D.I.L. switch is provided to configure the module's address. This value can be set in the range 1 to 125. The following programmable functions are available: Input Activation Mode, Delayed Input Alarm Activation, Output Delayed Activation.
Key Features of the GFE-IO-3 |
|---|
|
> 3 inputs / 3 outputs
> Fast Activation Response > Loop Powered > Status LEDs for I/O and O/P > Low Power Consumption > Module features an integral short-circuit loop isolator |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | GFE-IO-3 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | GFE ZEOS |
| Warranty | 10 Years |
FAQ’s for Global Fire Addressable 3-Channel Input/Output Module with Isolator (GFE-IO-3)
Product Specification for Global Fire Addressable 3-Channel Input/Output Module with Isolator (GFE-IO-3)
| Product code: | GFE-IO-3 |
| Dimensions: |
D:150mm x L:90mm x H:32mm |
| Supply voltage: |
Loop powered - 20V to 30V DC |
| Loop current - Quiescent: |
1.6 mA |
| Loop current - Alarm / Short-Circuit: |
IQ+ 1.2 mA for each I/P in alarm / IQ+ 1.4mA max. |
| Loop current - Open circuit: |
IQ+ 1.0 mA max. |
| Loop current - Output active: |
IQ+ 1.1 mA for each O/P activated |
| Out Relay Contact rating: |
2A 30V DC / 0.5A 125V AC |
| Operation temperature: | -10oC to +50oC |
| Max. Cable size: | 0.5 - 2.5mm2 |
| Max. humidity: | 95% RH Non-Condensing |
| Colour/Case material: | White & Transparent / ABS |
| Weight: | 216g inc packaging |
| For EN54-13 compliance please check the control panel manual specifications | |
