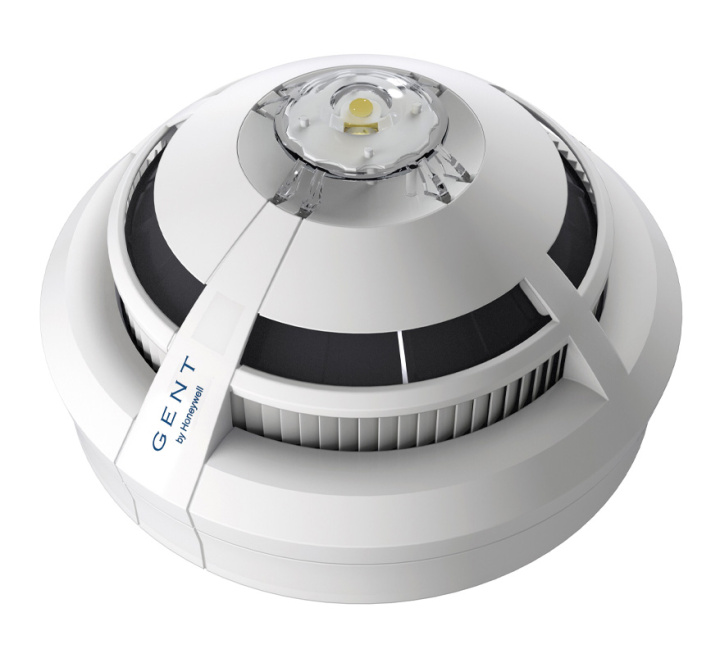

GENT S-Quad Addressable Heat Detector (S4-720)
SKU
S4-720
£59.26
£49.38
GENT S-Quad Addressable Heat Detector (S4-720)
- Buy 10 for £56.88 £47.40 each and save 4%
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for GENT S-Quad Addressable Heat Detector (S4-720)
The GENT S4-720 Heat Sensor is an S-Quad sensor with a unique combination of sensing elements to provide quick, intelligent fire decisions. The fully programmable heat sensor allows for significantly reduced false alarms.
Key Features of the S4-720 |
|---|
|
> Complete range of sensors with combinations of advanced sensing technologies including heat, dual angle optical scatter and carbon monoxide (CO)
> Combined sensing of carbon monoxide with dual angle optical scatter and heat allows a higher level of false alarm immunity in presence of steam and while still maintaining the integrity of detecting fires > Each sensor has certified sensitivity settings that suit certain environments/applications and may be programmed for different times of the day if required > Short circuit Isolator in each device > Configurable input/output connection for remote indicator or supervisory input fully synchronised sound patterns via the control panel > Heat sensor > Programmable sensor 'states' for different time frames > Monitored line input/output > Base supplied separately > LPCB approved to EN54-5 |
| Brand | GENT |
|---|---|
| Manufacturer Part No. | S4-720 |
| Product Series | S-Quad |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | GENT |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Colour | White |
| Warranty | N/A |
Write Your Own Review
FAQ’s for GENT S-Quad Addressable Heat Detector (S4-720)
No questions yet. Be the first to ask the question!
Product Specification for GENT S-Quad Addressable Heat Detector (S4-720)
| Model: |
S4-720 GENT S4 Heat Sensor |
| Dimensions: | Ø: 117mm x H: 49.6mm (63.8mm with base) |
| Device/Loop loading: |
200 devices per loop (assumes 800mA Loop Card) |
| Operating temperature: |
-10 to +50°C |
| Colour: | White, similar to RAL9010 |
| Detector category and approvals: | EN 54-5 |
| Weight: | ca.110g (170g with base) |
