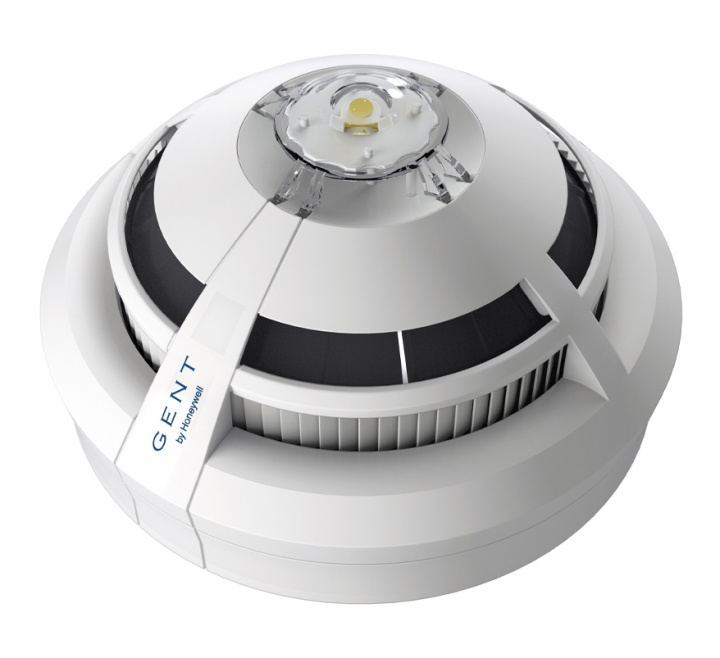

GENT S-Quad Addressable Dual Optical Heat Multisensor (S4-711)
SKU
S4-711
£82.93 £69.11
GENT S-Quad Addressable Dual Optical Heat Multisensor (S4-711)
- Buy 10 for £81.65 £68.04 each and save 2%
Product Details for GENT S-Quad Addressable Dual Optical Heat Multisensor (S4-711)
The GENT S4-711 is a Dual Optical Type Analogue Addressable Smoke Detector combined with a Heat Detection Element. It is specifically designed to be used with the Gent Vigilon range of Analogue Addressable Control Panels. This detector requires a Gent S4-700 base for mounting.
The S4-711 is a truly intelligent analogue sensor combining local processing in the sensor and the panel to achieve an immediate response to real fires whilst minimising the risk of false alarms.
Key Features of the S4-711 |
|---|
| > Complete range of sensors with combinations of advanced sensing technologies including heat, dual angle optical scatter and carbon monoxide (CO) > Combined sensing of carbon monoxide with dual angle optical scatter and heat allows a higher level of false alarm immunity in presence of steam and while still maintaining the integrity of detecting fires > Each sensor has certified sensitivity settings that suit certain environments/applications and may be programmed for different times of the day if required > Short circuit Isolator in each device > Configurable input/output connection for remote indicator or supervisory input fully synchronised sound patterns via the control panel > Programmable sensor 'states' for different time frames > Monitored line input/output > Base supplied separately |
| Brand | GENT |
|---|---|
| Manufacturer Part No. | S4-711 |
| Product Range / Series | S-Quad |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | GENT |
| Sensor Type | Combined Optical and Thermistor |
| Detectable Medium | Smoke, Heat |
| Colour | White |
| Warranty | N/A |
Write Your Own Review
FAQ’s for GENT S-Quad Addressable Dual Optical Heat Multisensor (S4-711)
No questions yet. Be the first to ask the question!
Product Specification for GENT S-Quad Addressable Dual Optical Heat Multisensor (S4-711)
| Model: | S4-711 GENT S4 Dual Optical Heat Detector |
| Dimensions: | Ø: 117mm x H: 49.6mm (63.8mm incl. base) |
| Device/Loop loading: | 200 devices per Loop (assumes 800mA Loop Card) |
| Operating temperature: | -10 to +50°C |
| Colour: | White (RAL 9010) |
| Approval: | EN54-5, EN54-7, EN54-17, EN54-18 |
| Weight: | ca.110g |
