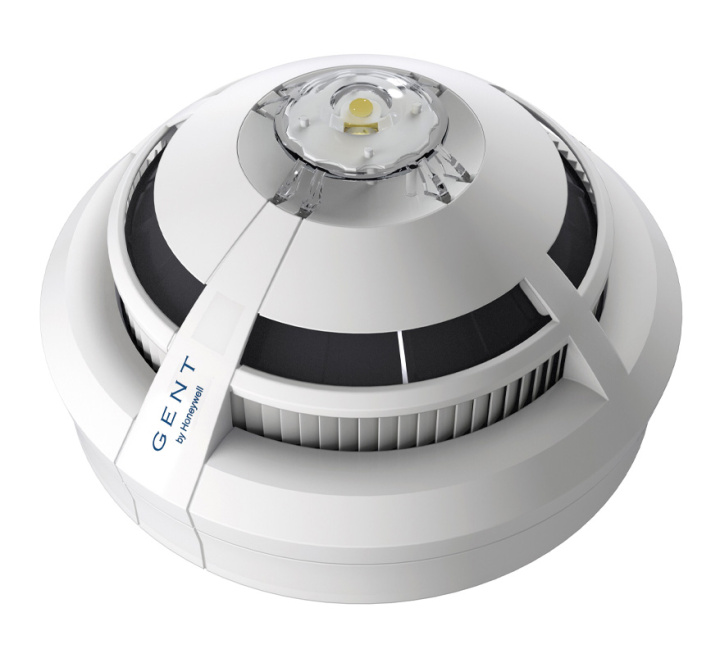

GENT S-Quad Addressable Dual Optical Heat Multisensor & High Power Red VAD (S4-711-VAD-HPR)
Product Details for GENT S-Quad Addressable Dual Optical Heat Multisensor & High Power Red VAD (S4-711-VAD-HPR)
The GENT S-Quad range of multifunction devices includes sensors with sounder, speech and EN54-23 certified visual alarms. This allows the maximum flexibility for designers providing cover for a building. The advanced sensing technology is enhanced with a device that can alert building occupants with a highly visible visual alarm and a recorded voice message to ensure all occupants are alerted to an emergency.
Innovative design has allowed the LED visual alarm to be built into the centre of the sensor with the sounder and speech circuits inside providing a neat and aesthetic solution to multi-function devices.
The visual alarm and voice messages are synchronised across each control panel ensuring a clear unambiguous message to building occupiers. The GENT S4-711-VAD-HPR provides a cost-effective solution for alarm signalling.
Key Features of the S4-711-VAD-HPR |
|---|
|
> Complete range of sensors with combinations of advanced sensing technologies including heat, dual angle optical scatter and carbon monoxide (CO)
> Combined sensing of carbon monoxide with dual angle optical scatter and heat allows a higher level of false alarm immunity in presence of steam and while still maintaining the integrity of detecting fires > Each sensor has certified sensitivity settings that suit certain environments/ applications and may be programmed for different times of the day if required > Short circuit Isolator in each device > Configurable input/output connection for remote indicator or supervisory input fully synchronised sound patterns via the control panel > Sensor sounders have adjustable sound level and tones to match system sounders > Sounder element monitoring and over-load protection to ensure operation even in event of cable fault > Sound output synchronised and compatible with S-Quad range of EN54-23 VADs |
| Brand | GENT |
|---|---|
| Manufacturer Part No. | S4-711-VAD-HPR |
| Product Series | S-Quad |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | GENT |
| Sensor Type | Combined Optical and Thermistor |
| Detectable Medium | Smoke, Heat |
| Colour | White |
| Warranty | N/A |
FAQ’s for GENT S-Quad Addressable Dual Optical Heat Multisensor & High Power Red VAD (S4-711-VAD-HPR)
Product Specification for GENT S-Quad Addressable Dual Optical Heat Multisensor & High Power Red VAD (S4-711-VAD-HPR)
| Model: | S4-711-VAD-HPR GENT S4 Dual Optical Heat Sensor, High Power, Red VAD |
| Dimensions: | Diameter: 117mm (140mm with base and IP21 plate) x D:49.6mm (63.8mm with base) |
| Strobe colour: | Red |
| VAD Category - High Performance: | Power settings: High - C-3-14 (Also Open Category C-4.5-14) Medium - C-3-13 (Also Open Category C-4-13) Low - C-3-10 |
| Approvals: | EN54-23, BS5839 part 1 |
| IP Rating: | IP21 when used with IP Sensor Base S4-701 |
| Operating temperature: | -10 to +50°C |
| Body Colour: | White |
| Weight: | ca.110g (170g with base) |
