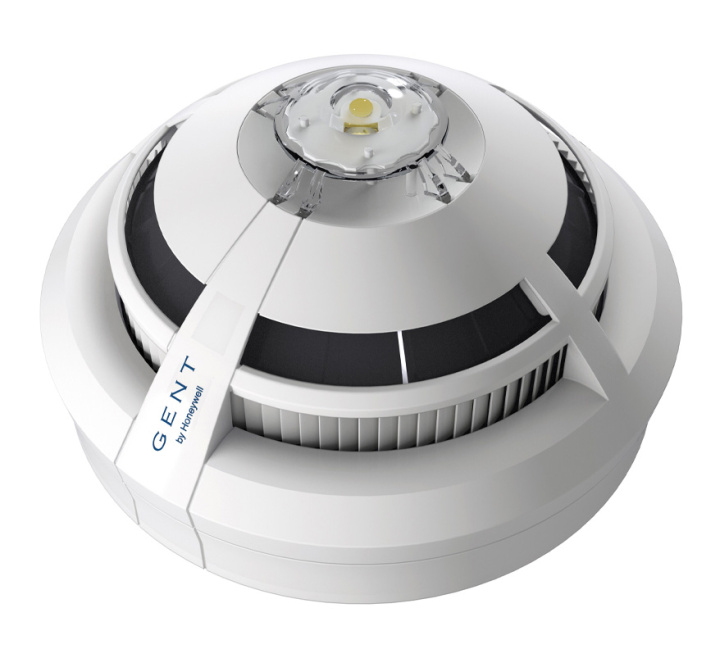

GENT S-Quad Addressable Dual Optical Heat & CO Multisensor (S4-901)
SKU
S4-901
£106.50
£88.75
GENT S-Quad Addressable Dual Optical Heat & CO Multisensor (S4-901)
- Buy 10 for £102.24 £85.20 each and save 4%
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for GENT S-Quad Addressable Dual Optical Heat & CO Multisensor (S4-901)
The GENT S4-901 S-Quad CO Dual Optical Heat Sensor by GENT combines sensing of carbon monoxide with dual angle optical scatter and heat that allows a higher level of false alarm immunity in the presence of steam, while maintaining the integrity of detecting fires. Each sensor has certified sensitivity settings that suit certain environments/ applications and may be programmed for different times of the day, if required.
The S4-901 is a truly intelligent analogue sensor combining exceptional computing power in the sensor as well as the panel to achieve an extremely fast response to a real fire whilst minimising the risk of false alarms.
Key Features of the S4-901 |
|---|
|
> Complete range of sensors with combinations of advanced sensing technologies including heat, dual angle optical scatter and carbon monoxide (CO)
> Combined sensing of carbon monoxide with dual angle optical scatter and heat allows a higher level of false alarm immunity in presence of steam and while still maintaining the integrity of detecting fires > Each sensor has certified sensitivity settings that suit certain environments/applications and may be programmed for different times of the day if required > Short circuit Isolator in each device > Configurable input/output connection for remote indicator or supervisory input fully synchronised sound patterns via the control panel > Programmable sensor 'states' for different time frames > Monitored line input/output > Base supplied separately |
| Brand | GENT |
|---|---|
| Manufacturer Part No. | S4-901 |
| Product Series | S-Quad |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | GENT |
| Sensor Type | Combined Optical, Thermistor and Electrochemical |
| Detectable Medium | Smoke, Heat, Carbon Monoxide (CO) |
| Colour | White |
| Warranty | N/A |
Write Your Own Review
FAQ’s for GENT S-Quad Addressable Dual Optical Heat & CO Multisensor (S4-901)
No questions yet. Be the first to ask the question!
Product Specification for GENT S-Quad Addressable Dual Optical Heat & CO Multisensor (S4-901)
| Model: |
S4-901 GENT S4 CO Dual Optical Heat Sensor |
| Dimensions: | Ø: 117mm x H: 49.6mm (63.8mm incl. base) |
| Device/Loop loading: |
200 devices per Loop (assumes 800mA Loop Card) |
| Operating temperature: |
-10 to +50°C |
| Colour: | White (RAL 9010) |
| Approval: | EN54-5, EN54-7, EN54-17, EN54-18 |
| Weight: | ca.110g |
