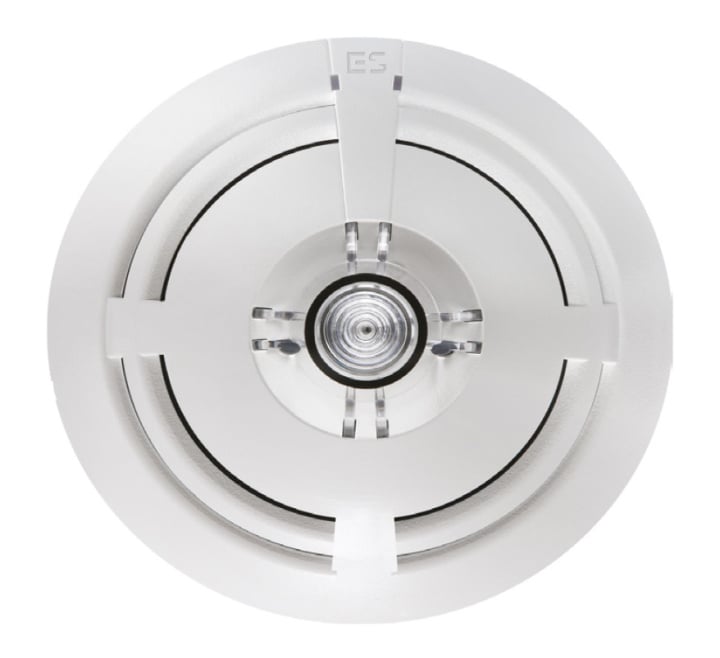

GENT ES Detect Conventional Rate of Rise Heat Detector (800271)
SKU
800271
£25.20
£21.00
GENT ES Detect Conventional Rate of Rise Heat Detector (800271)
- Buy 10 for £24.19 £20.16 each and save 4%
In Stock
Product Details for GENT ES Detect Conventional Rate of Rise Heat Detector (800271)
The GENT 800271 ES Detect Conventional Rate of Rise Heat Detector uses a fast semiconductor sensor to guarantee reliable detection of fires with rapidly rising temperatures and an integrated fixed temperature function for the detection of fires with slowly rising temperatures.
The ES Detect automatic detector is a non-addressable detector specifically designed for operation on conventional systems. The range not only includes intelligent algorithms for fire detection but also a wide range of different types of detectors.
The ES Detect range is only approved to be installed with Xenex Control Panels or with Vigilon via interface units.
Key Features of the 800271 |
|---|
|
> Advanced microprocessor controlled detection
> Self monitoring for contamination, to maintain optimum sensitivity throughout whole life > Compatible with diode base to monitor detector removal |
| Brand | GENT |
|---|---|
| Manufacturer Part No. | 800271 |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Warranty | N/A |
Write Your Own Review
FAQ’s for GENT ES Detect Conventional Rate of Rise Heat Detector (800271)
No questions yet. Be the first to ask the question!
Product Specification for GENT ES Detect Conventional Rate of Rise Heat Detector (800271)
| Model: |
800271 GENT Rate of Rise Heat Detector |
| Dimensions: | Ø: 117 mm x H: 49 mm (62 mm incl. base) |
| Operating voltage |
@ 9 VDC - typ. 9mA |
| Quiescent current: | approx. 25A |
| Air speed: |
0 to 25.4 m/s |
| Storage temperature: |
-25 °C to 75 °C |
| Min. Operating temperature: |
-20°C |
| Typical application temperature: |
Up to +50°C |
| Air humidity: | <95% |
| Type of protection: | IP43 (with base + option) |
| Material: | ABS |
| Colour: | White, similar to RAL9010 |
| Detector category and approvals: | EN 54-5 A1R |
| Weight: | ca.110g |
