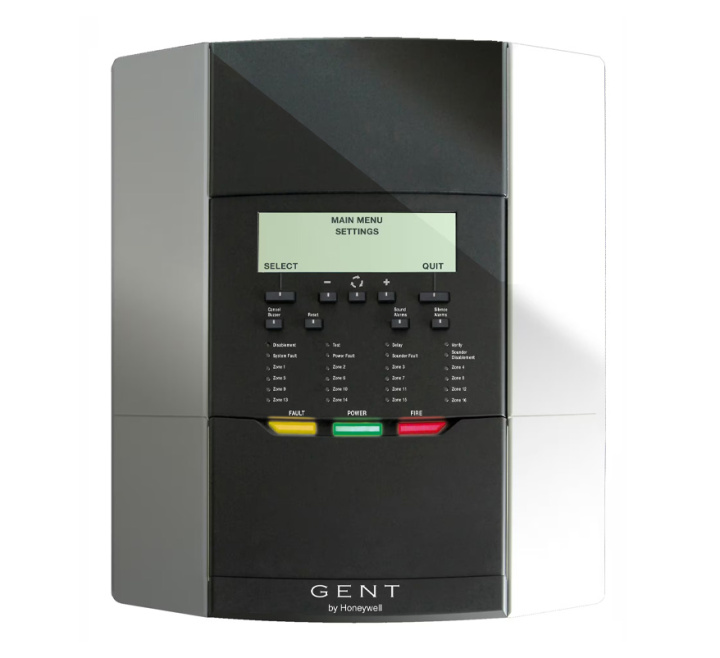

GENT Nano Single Loop Addressable Fire Panel (NANO-24)
Product Details for GENT Nano Single Loop Addressable Fire Panel (NANO-24)
The GENT Nano is a single-loop analogue addressable panel with an intuitive user interface and attractive appearance.
From installation and commissioning to everyday use, Nano delivers an experience that makes the fire alarm system easy to use and safe to operate.
The panel's appearance means that Nano may be installed and look good in any type of building.
Nano operates the latest range of Vigilon loop devices from Honeywell Gent. This allows a small system to benefit from Gent’s advanced fire detection technology and powered loop performance with ranges such as S-Quad and S-Cubed including the powerful EN54-23 offering.
The Nano commissioning tool allows simple cause and effect to be configured either offline or online using an easy-to-use commissioning tool.
Key Features of the NANO-24 |
|---|
|
> Nano is compatible with Gent’s range of loop-powered devices
> All devices connect onto the same two-core loop, separate sounder wiring circuits are not required > Nano drives advanced detection technology including the full SQuad range > Devices can be added and system changes can be managed via the panel interface or the commissioning tool > Nano's commissioning tool has been developed specifically to improve the setup and commissioning time > The Nano panel has a stylish design that would suit any building > Commissioning tool allows a fire plan to be configured remotely or on-site through a USB connection |
| Brand | GENT |
|---|---|
| Manufacturer Part No. | NANO-24 |
| Product Series | Nano |
| Primary Power Source | Mains Powered (230V) |
| System Type | Addressable |
| Number of Loops (Fitted) | 1 |
| Max No. of Loops Possible | 1 |
| Protocol Compatibility | GENT |
| Colour | White |
| Warranty | N/A |
FAQ’s for GENT Nano Single Loop Addressable Fire Panel (NANO-24)
Product Specification for GENT Nano Single Loop Addressable Fire Panel (NANO-24)
| Type | Control Panel |
| Loop Capacity | 127 devices |
| Batteries | 2 x 12v 7Ah |
| Battery Standby | 24 hours standby (subject to battery calculations) |
| Approx weight | 9kg (with batteries) |
| Operating Temperature | 0ºC to +45ºC |
| Cable entry | Top and rear knockouts |
| Approvals | EN54 Parts 2 & 4 and CPD |
