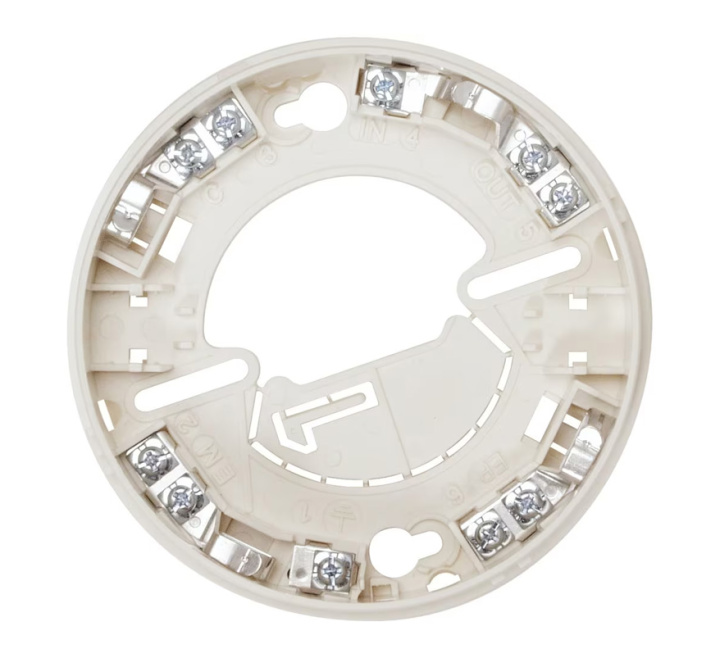

GENT ES Detect Conventional Detector Base (No Diode) (805590)
SKU
805590
£7.13
£5.94
GENT ES Detect Conventional Detector Base (No Diode) (805590)
- Buy 10 for £6.84 £5.70 each and save 4%
In Stock
Product Details for GENT ES Detect Conventional Detector Base (No Diode) (805590)
The GENT 805590 ES Detector Base is designed for use with ES Conventional & Intrinsically Safe detection devices.
Key Features of the 805590 |
|---|
|
> Easy to install
> Generous space for wire connection > Slide-easy > Automatic closing of the loop bus wiring system for detector extraction > Detector extraction locking enclosed in base > One-way fit |
| Brand | GENT |
|---|---|
| Manufacturer Part No. | 805590 |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Colour | White |
| Warranty | N/A |
Write Your Own Review
FAQ’s for GENT ES Detect Conventional Detector Base (No Diode) (805590)
No questions yet. Be the first to ask the question!
Product Specification for GENT ES Detect Conventional Detector Base (No Diode) (805590)
| Model: |
805590 GENT Detector Base. For ES Conventional & Intrinsically Safe detection |
| Dimensions: | Ø: 117 mm H: 24 mm (incl. detector 62 mm) |
| Compatibility: |
Range of combined detection and alarm devices from the S-Quad / ES Detect ranges |
| Cable entry: | On the side or through bottom plate |
| Wago clamps for looping in wires, e.g. type 243-204 (Ø 0.5 mm - Ø 1.0 mm) or 273-104 (0.75 mm² - 2.5 mm²) can be mounted on the detector base |
|
| Operating temperature: |
-20oC to +72oC |
| Humidity: | <95% (non-condensing) |
| Connection terminal: | Ø 0.6 mm to 2 mm² |
| Material: |
White (similar to RAL 9010) ABS |
| Mounting: | UK Standard BESA or conduit boxes |
| Weight: | approx. 60g |
