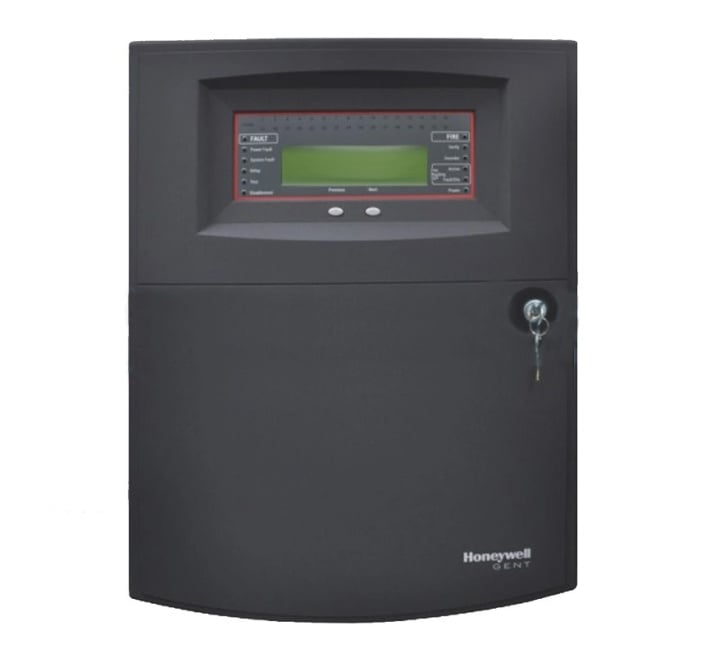

GENT Vigilon Plus 1-4 Loop Fire Control Panel c/w 1 Loop Card (VIGPLUS-24)
Product Details for GENT Vigilon Plus 1-4 Loop Fire Control Panel c/w 1 Loop Card (VIGPLUS-24)
The GENT VIGPLUS-24 Vigilon Plus Control Panels can acommodate 1 to 4 loops, each accommodating up to 200 devices including advanced fire sensors, interfaces, call points, alarm sounders and visual alarms. Advanced networking options allow networking of up to 200 panels in a multi-domain structure with options of copper or optic fibre connections.
Vigilon’s back-lit LCD display presents clear indication of Fire or Fault location and the control panel’s innovative 8-line x 40 character display with push-button keypad is simple to use. Fire Plans can be tailored to precisely meet site requirements. Vigilon’s software allows network areas to be sectored to evacuate or alert status, or configured with pre-set delays.
The Vigilon Plus Repeat control panel provides full display and control of the system. Connecting to the detection loop, the repeat panel provides a cost effective solution with minimum requirements for cabling and installation. Repeat panels are supplied complete with their own 72 hour power supply and standby batteries.
Key Features of the VIGPLUS-24 |
|---|
|
> Integral EN54-4 PSU and battery standby for 24 hours (4 loop)
> Vigilon’s sensing technology and powerful software processing in the panel quickly identifies real fires > PC based commissioning tools allow complex fire plans to be configured > Advanced loop card technology allows for system status monitoring and diagnostics > Extended event log using flash memory card > The control panel has a simple user interface with LCD screen providing accurate information in an emergency > Multiple panel networks can be programmed seamlessly as one system, allowing for flexible design and system management > Flexible programming options are available at the panel > All Vigilon devices connect onto the same two core loop, separate sounder or repeater panel wiring circuits are not required > In the event of a fire or fault, Vigilon’s analogue addressable technology will provide a detailed log of events |
| Brand | GENT |
|---|---|
| Manufacturer Part No. | VIGPLUS-24 |
| Product Series | Vigilon |
| Primary Power Source | Mains Powered (230V) |
| System Type | Addressable |
| Number of Loops (Fitted) | 1 |
| Max No. of Loops Possible | 4 |
| Protocol Compatibility | GENT |
| Colour | Black |
| Warranty | N/A |
FAQ’s for GENT Vigilon Plus 1-4 Loop Fire Control Panel c/w 1 Loop Card (VIGPLUS-24)
Product Specification for GENT Vigilon Plus 1-4 Loop Fire Control Panel c/w 1 Loop Card (VIGPLUS-24)
| Model: |
VIGPLUS-24 GENT 1 to 4 Loop Vigilon Plus Control Panel c/w 1 loop card, black, Batteries included |
| Dimensions: | W:406mm x H:543mm x D:172mm |
| Max. quantity per loop: | 4 |
| Loop capacity: | 200 with an alarm current of up to 800mA (Equivalent to 100 sensor sounders VADs) |
| Batteries: | 2 x 21Ah |
| Battery standby: | 24 hours + 30 minutes alarm upgradeable to 72 hours |
| Operating temperature: | 0ºC to +45ºC |
| Cable entry: |
Top and rear knockins |
| Colour: | Black |
| Approvals: |
EN54 Parts 2 & 4 EN54-2 requires that Vigilon 4 & 6 loop panels are restricted to max. 512 sensors and call points |
| Weight: | ca. 22 Kg with batteries |
