Product Details for Siemens FT724-ZZ Cerberus PRO Fire Terminal (No PSU, No Loops, Requires 24v Supply) (S54400-C31-A2)

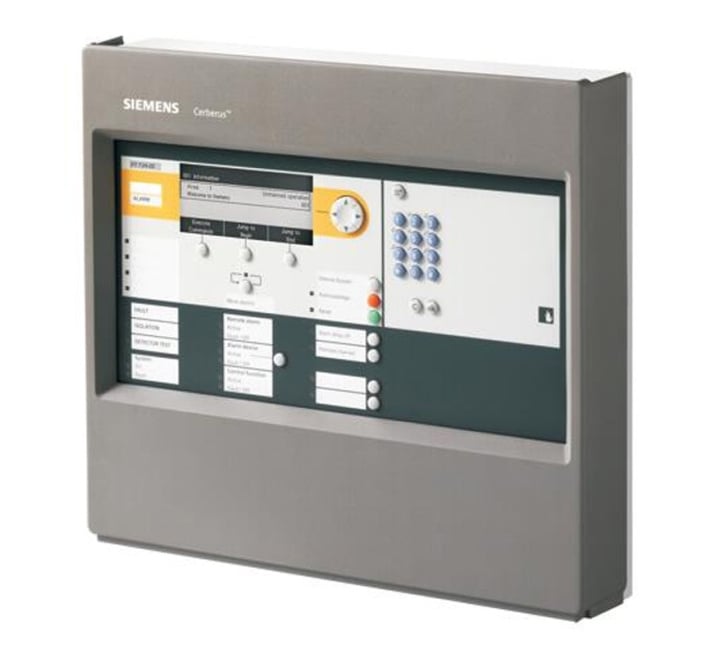

The Siemens FT724 fire terminal is an operating panel remote from the central control panel that can be operated with its own power supply as well, as an option.
The operating unit has installation slots for optional interfaces such as RS232, RS485, networking modules (SAFEDLINK) and a key switch. Up to 32 fire control panels and fire terminals can be connected in a single cluster (C-WEB/SAFEDLINK network), or up to 16 panels when the cluster is connected to a danger management system.
Using a fiber-optic backbone (C-WEB/LAN) up to 14 of these clusters with up to 16 panels each can be networked. This topology enables the construction of an EN 54-conform network with up to 64 fire control panels and fire terminals.
The optional power supply i.e. power supply kit (70 W) and batteries 2 x 12 V / 7 Ah must be ordered separately.
Key Features of the S54400-C31-A2 |
|---|
|
> Person Machine Interface that is used remotely from the control panel, which can be optionally provided with its own power supply
> Up to five fire terminals can be configured with system-wide visibility > The fire terminal has spaces for installing optional interfaces such as an RS232 or RS485, network modules (SAFEDLINK), and a key switch > Ethernet connection > The powerful C-WEB can be used to network up to 64 fire control panels FC72x and fire terminals with one another in any way > Interface to Siemens danger management system |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FT724-ZZ |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Warranty | 5 Years |
FAQ’s for Siemens FT724-ZZ Cerberus PRO Fire Terminal (No PSU, No Loops, Requires 24v Supply) (S54400-C31-A2)
Product Specification for Siemens FT724-ZZ Cerberus PRO Fire Terminal (No PSU, No Loops, Requires 24v Supply) (S54400-C31-A2)
| Product: | Siemens Fire Terminal (Housing Eco) |
| Product code: | S54400-C31-A2 |
| Dimensions: | 430mm x H:398mm x D:103mm |
| Cabinet Dimensions: | W:430mm x H:398mm x D:80mm (no cover cap) W:430mm x H:398mm x D:108mm (with cover cap) |
| Quiescent current: |
125 mA |
| Battery capacity: |
Max. 2 x 12 V / 7 Ah (optional) |
| Plug-in position: |
2 -> for serial interfaces RS232, RS485 , 2 -> for network modules |
| Operating temperature: | -8 to +42 °C |
| Storage temperature: | -20 to +60 °C |
| Relative humidity: | ≤95 % rel. (no condensation) |
| Operating voltage: | DC 21 - 28.6V |
| Power supply: | 70W (optional) |
| Protection category: | IP30 |
| Colour: | Grey, RAL 7035 / Grey RAL 050 00 00 |
