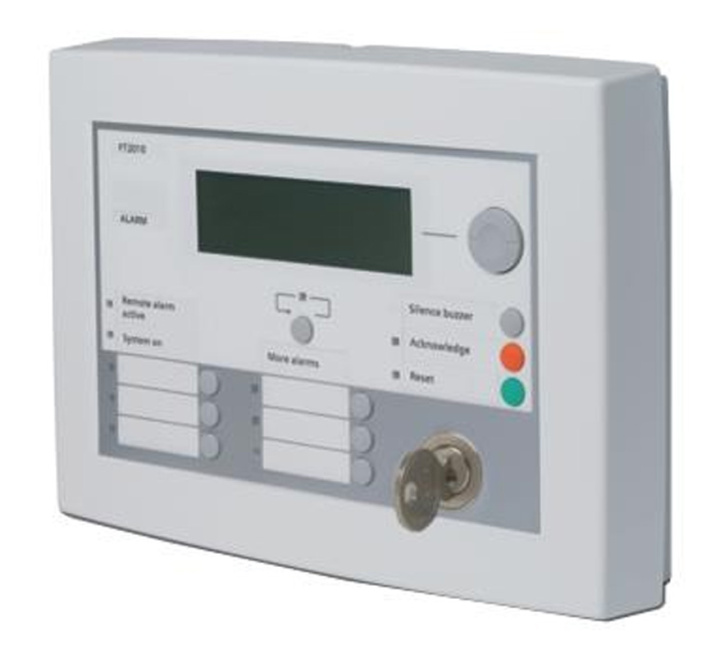

Siemens FT2010-C1 Cerberus PRO Floor Repeater Panel (Kaba Key) (S54400-F34-A1)
- Buy 10 for £1,063.60 £886.33 each and save 2%
Product Details for Siemens FT2010-C1 Cerberus PRO Floor Repeater Panel (Kaba Key) (S54400-F34-A1)
The Siemens FT2010-C1 is a small floor repeater operation and display panel with large backlit display and plain text readout (6 lines of 40 characters each) for use with the addressed Sinteso FS20, Cerberus PRO FS720 and Cerberus FIT FC360 fire detection systems.
The personnel responsible at the customer's premises have access to a clearly structured user interface for customer-specific plain texts to enable exact localization of events. Sections and zones operated and visualized using the floor repeater terminal can be configured. Display of alarms, pre-alarms, technical messages, faults, isolations possible.
With the navigation keys an indicated list in the display can be scrolled through. Acknowledgement and resetting of events. Event text identical with the fire control panel or fire terminal.
Kaba key switch for operating access and sheet metal flat rear. Power supply via FDnet/C-NET, separate 24 V power supply possible.
The floor repeater terminal can be operated in loops or stub lines.
Key Features of the S54400-F34-A1 |
|---|
|
> Installed remotely from the fire control panel, e.g., on one floor, and is used to display events and operate fire detection functions locally
> Communication and power supply via FDnet/C-NET > External, electrically isolated AC/DC supply possible > Two-wire installation for all cable types > Large backlit display with plain text display > Flat housing suitable for the stations of the fire detection systems > Display and operation of sections and zones within a building > Individual configuration of the sections and zones to be operated and displayed via the floor repeater terminal > Possible to display alarms, pre-alarms, technical messages, faults, isolations from the entire system > Acknowledgement and resetting of events > Event text identical to the fire control panels FC20xx/FC72x and the fire terminals FT2040/FT724 > Navigation button to scroll through menus and messages in the display > Clear and well-laid-out user interface for customer-specific plain text messages to enable clear localization of events > Enabling of access level 2.2 with the Kaba key switch > Starting the investigation time and resetting the alarm during the investigation time > Integrated line separator > Insertable inscription strips > EN54-4 conformity not required |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FT2010-C1 |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Colour | Grey |
| Warranty | 5 Years |
FAQ’s for Siemens FT2010-C1 Cerberus PRO Floor Repeater Panel (Kaba Key) (S54400-F34-A1)
Product Specification for Siemens FT2010-C1 Cerberus PRO Floor Repeater Panel (Kaba Key) (S54400-F34-A1)
| Product: | Siemens Floor Repeater Terminal, Kaba key |
| Product code: | S54400-F34-A1 |
| Dimensions: | W:282mm x H:207mm x D:46mm |
| Standard: | EN54-17, EN54-18 |
| Cable capacity: | 0.8 - 1.5 mm2 |
| Communication protocol: | FDnet/C-NET |
| System compatibility: | FDnet -> FS20 C-NET -> FS720 |
| Operating temperature: | -8 to +42 °C |
| Storage temperature: | -20 to +60 °C |
| Relative humidity: | ≤95 % rel. (no condensation) |
| Operating voltage: | DC 12 - 32V |
| Supply voltage: | DC 20 - 30 V AC 15 - 18 V (external supply input) |
| Power supply: | Loop powered, external |
| Current consumption: | 5 mA @ 24 V (quiescent current, LCD illumination inactive) 45 mA @ 24 V (max. current, LCD illumination active) |
| No. of addresses: | 1 |
| Protection category: |
