Siemens FT2011-A1 Cerberus PRO Floor Repeater Display Panel (A5Q00017706)
- Buy 10 for £559.87 £466.56 each and save 2%
Product Details for Siemens FT2011-A1 Cerberus PRO Floor Repeater Display Panel (A5Q00017706)

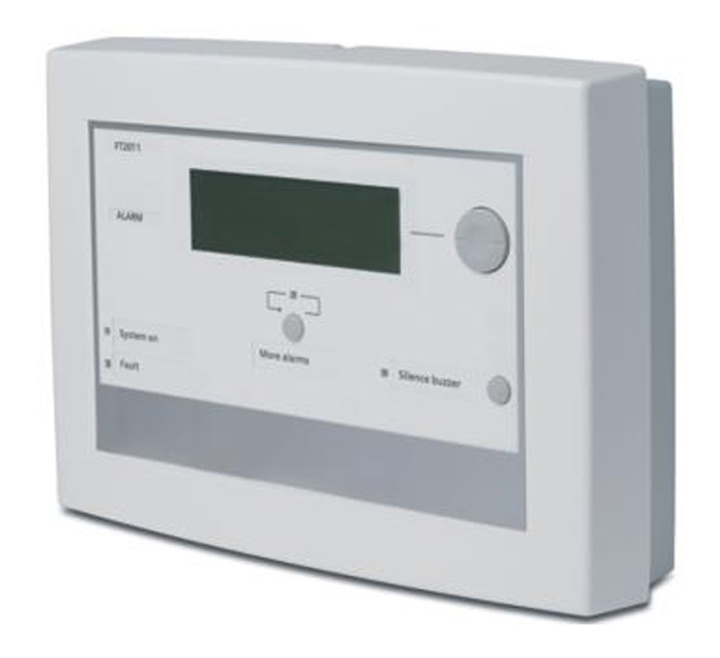

The Siemens FT2011-A1 is a small floor repeater display panel with large backlit display and plain text readout (6 lines of 40 characters each) for use with the addressed Sinteso FS20, Cerberus PRO FS720 and Cerberus FIT FC360 fire detection systems.
The personnel responsible at the customer's premises have access to a clearly structured user interface for customer-specific plain texts to enable events to be localized unambiguously. Sections and zones visualized using the floor repeater display can be configured.
Display of alarms, pre-alarms, technical messages, faults, isolations possible. With the navigation keys an indicated list in the display can be scrolled through. The internal buzzer can be switched off in case of alarm messages. Event text identical with the fire control panel or fire terminal.
Power supply via FDnet/C-NET, separate 24 V power supply possible.
The floor repeater display can be operated in loops or stub lines.
Key Features of the A5Q00017706 |
|---|
|
> Display of sections and zones within a building
> Individual configuration of the sections and zones to be displayed via the floor repeater display > Possible to display alarms, pre-alarms, technical messages, faults, isolations from the entire system > Event text identical to the fire control panels FC20xx/FC72x and the fire terminals FT2040/FT724 > Navigation button to scroll through messages in the display > In the event of alarm messages, the internal buzzer can be deactivated > Power supply possible via FDnet/C-NET or via external, electrically isolated AC/DC power supply > Integrated line separator > Insertable inscription strips > EN54-4 conformity not required |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FT2011-A1 |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Colour | Grey |
| Warranty | 5 Years |
FAQ’s for Siemens FT2011-A1 Cerberus PRO Floor Repeater Display Panel (A5Q00017706)
Product Specification for Siemens FT2011-A1 Cerberus PRO Floor Repeater Display Panel (A5Q00017706)
| Product: | Siemens Floor Repeater Display |
| Product code: | A5Q00017706 |
| Dimensions: | W:282mm x H:207mm x D:79mm |
| Standard: | EN54-17, EN54-18 |
| Cable capacity: | 0.8 - 1.5 mm2 |
| Communication protocol: | FDnet/C-NET |
| System compatibility: | FDnet -> FS20 C-NET -> FS720 |
| Operating temperature: | -8 to +42 °C |
| Storage temperature: | -20 to +60 °C |
| Relative humidity: | ≤95 % rel. (no condensation) |
| Operating voltage: | DC 12 - 32V |
| Supply voltage: | DC 20 - 30 V AC 15 - 18 V (external supply input) |
| Power supply: | Loop powered, external |
| Current consumption: | 5 mA @ 24 V (quiescent current, LCD illumination inactive) 45 mA @ 24 V (max. current, LCD illumination active) |
| No. of addresses: | 1 |
| Protection category: | IP30 |
| Colour: | Light grey, RAL 7035 |
