Siemens HI722 Cerberus PRO Fixed Temperature Heat Detector (S54310-F3-A1)
SKU
S54310-F3-A1
£30.11
£25.09
Siemens HI722 Cerberus PRO Fixed Temperature Heat Detector (S54310-F3-A1)
Limited Stock
Product Details for Siemens HI722 Cerberus PRO Fixed Temperature Heat Detector (S54310-F3-A1)
The Siemens HI722 is suitable for areas with temporary high variations in temperature. Measures the operating temperature and when the maximum temperature is exceeded, the detector sends a danger signal to the fire control panel.
The base must be ordered separately.
Key Features of the S54310-F3-A1 |
|---|
|
> Point detector with one heat sensor

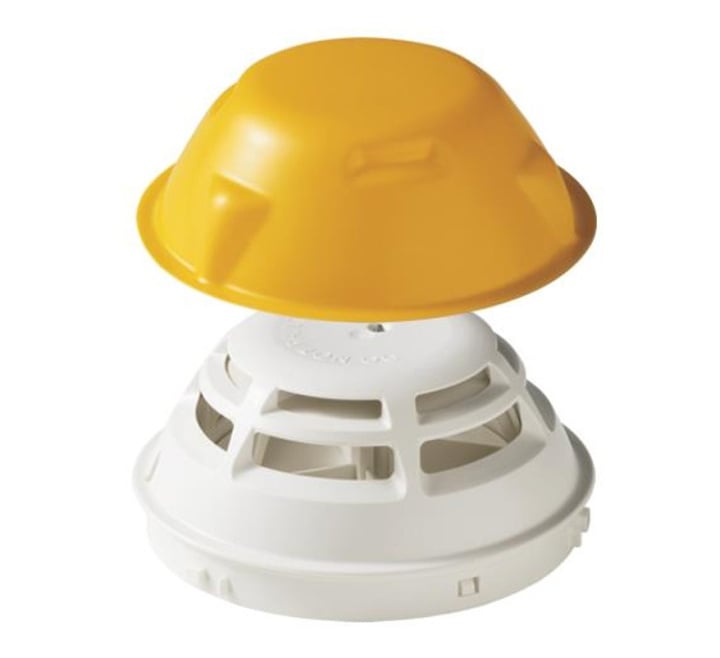

> Detector dust cap to protect the point detector during the construction phase > Measures the operating temperature > Sends danger signal to the fire control panel if the maximum temperature is exceeded > Parameter set: 'A2S' > Suitable for rooms with an operating temperature that fluctuates greatly for a short period of time > Where significant dust or dirt deposits and temperature fluctuations could impair the operation of standard detectors |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | HI722 |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Colour | White |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens HI722 Cerberus PRO Fixed Temperature Heat Detector (S54310-F3-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens HI722 Cerberus PRO Fixed Temperature Heat Detector (S54310-F3-A1)
| Product: | Siemens Fixed temperature Heat Detector with dustcap |
| Product code: | S54310-F3-A1 |
| Standard: | EN 54-5 , EN 54-17 |
| Operating voltage: | DC 12 - 33V |
| Operating temperature: |
-10 to 55 °C |
| Storage temperature: |
-30 to 70 °C |
| Quiescent current: | 200 μA |
| Ext. alarm indicator: | 2 |
| System compatibility: | C-NET -> FS720 |
| Communication protocol: |
C-NET
|
| Protection category: | IP40; IP42 with detector base seal |
| Relative humidity: | ≤95 % rel. |
| Colour housing/cover: | Pure white, ~RAL 9010 |
