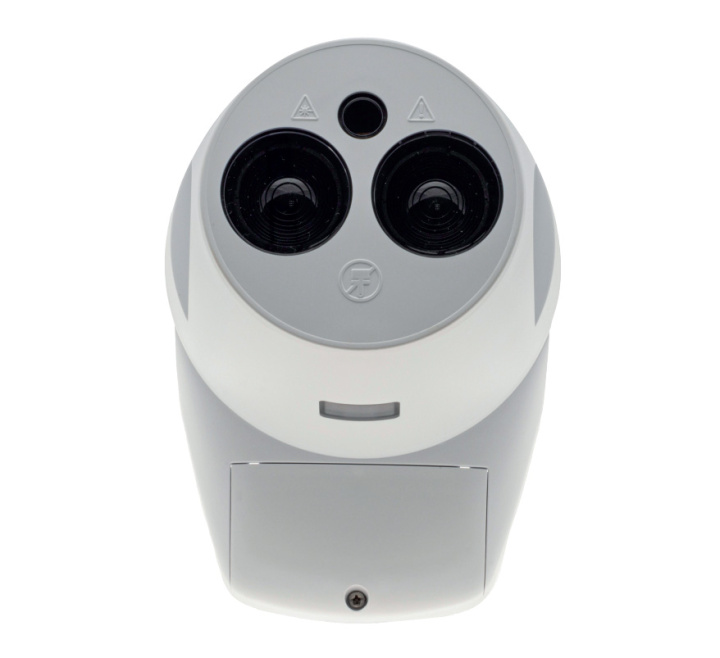

Fireray One Auto-Aligning Reflective Beam Detector (6010-100)
SKU
6010-100
£539.76 £449.80
Fireray One Auto-Aligning Reflective Beam Detector (6010-100)
The Fireray One is a standalone reflective beam detector that prioritises ease of installation, requiring no specialist tools or knowledge for installation and operation. Using the Fireray One, it couldn’t be easier to bring the benefits of beam detection to your application:
- Auto-Aligns – using the integrated user interface – just steer the laser onto the Reflector, then at the flick of a switch, it aligns itself. 8 times faster than previous detectors
- One person installation – everything can be done by one person
- One standalone product – no specialist tools required; minimal prior knowledge and training needed
Ideal Applications
- Education and Heritage Establishments
- Industrial Units and Warehousing
- Aviation Hangars
- Glass Atria in Hotels and Retail Complexes
- Chemical Processing and Storage Facilities
| Key Features |
|---|
| > Integrated visible laser and auto-alignment for ultimate ease of alignment > Integrated user interface > Prevent nuisance alarms with Light Cancellation Technology™ which compensates for sunlight and artificial light sources > Building Movement Tracking™ continuously maintains alignment when buildings settle or flex due to temperature variations > Contamination Compensation to correct for gradual build-up of dust on optics > Clean detectors quickly and easily without affecting alignment > Low power consumption; can be powered from the loop > Prevent interference between beams with Dynamic Beam Phasing; install beams facing each other or in irregular configurations > Detection range of up to 120m (with additional long-range kit) |
| Manufacturer | Fire Fighting Enterprises |
|---|---|
| MPN | 6010-100 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Product: | FireRay One Standalone Beam Detector |
| Product code: | 6010-100 |
| Dimensions: | W:130mm x H:181mm x D:134mm W:100mm x H:100mm x D:9mm |
| Detection range: | 50m (separation distance between detector and reflector 5 - 50m) |
| Multi-detector arrangement: | Dynamic Beam Phasing allows for Detectors to face each other with the reflectors in the middle |
| Beam path clearance: | 1m in diameter from centre line between detector & reflector |
| Optical wavelength - smoke detection: | 850mm near infrared (invisible) |
| Integrated laser alignment: | 650mm visible. Class 3R <5mW |
| Signal output: | Individual alarm and fault relays (VFCO) 0.5A @ 30VDC |
| Status Indicators: | Alignment: 2 Green LEDs, 1 Yellow LED System status: Normal operation – Green LED flashing every 10 seconds Alarm condition – Red LED flashing every 5 seconds Fault condition – Yellow LED flashing every 10 seconds for obscuration or every 5 seconds for contamination |
| Alarm response thresholds: | 25% (1.25dB) – Fastest response to smoke 35% (1.87dB) – Default value 55% (3.46dB) – High immunity to false alarms, slow response to smoke 85% (8.23dB) – Highest immunity to false alarms, slowest response to smoke Configured via the integrated user interface |
| Operating voltage: | 14 - 36 VDC |
| Operating current: | 5 mA; 33mA in fast alignment mode |
| Cables: | 2 core, dedicated, 0.5 to 1.6mm (24-14 AWG) 3 knock-out locations capable of accepting M20, ½" or ¾" glands; 4 drill-out locations capable of accepting glands up to 21mm diameter |
| Operating temperature: | -20 to +55 °C |
| Storage temperature: | -40 to +85 °C |
| Humidity: | 0 - 93% (non-condensing / non-icing) |
| IP Rating: | IP55 |
| Housing flammability rating: | UL94 V0 polycarbonate |
| Housing colour: | White, RAL9016, UV stable |
