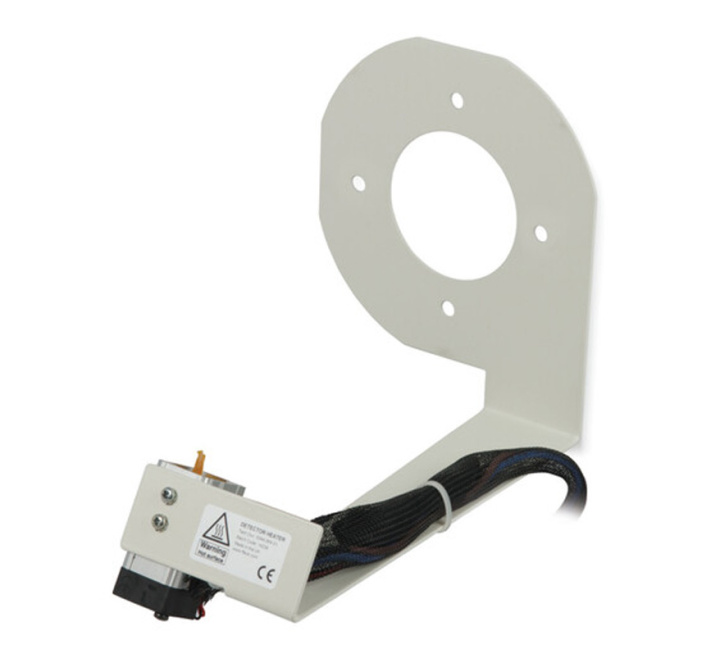

FFE Fireray One Anti-Condensation Heater (1060-000)
SKU
1060-000
£265.20
£221.00
Fireray One Anti-Condensation Heater (1060-000)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for FFE Fireray One Anti-Condensation Heater (1060-000)
The Fireray® One anti-condensation heater has been designed to be used where condensation affects the operation of optical beam smoke detectors. The design of the Fireray® One anti-condensation heater utilises forced air, resulting in a circulating current of warm air which maintains the detector lens at an incrementally higher temperature than the surrounding air. The heater reduces the likelihood of condensation forming on the lens which, in turn, reduces the potential for false alarms.
Key Features of the 1060-000 |
|---|
|
> 24V (AC or DC) 20W Anti-Condensation Heater
> Reduces condensation on the lens of the Fireray One beam detector > Bespoke bracket to ensure optimum performance of heater > Designed to prevent the build-up of condensation > For use in temperature controlled storage areas and cold environments |
| Brand | Fire Fighting Enterprises |
|---|---|
| Manufacturer Part No. | 1060-000 |
Write Your Own Review
FAQ’s for FFE Fireray One Anti-Condensation Heater (1060-000)
No questions yet. Be the first to ask the question!
Product Specification for FFE Fireray One Anti-Condensation Heater (1060-000)
| Code: | 1060-000 |
| Description: | Fireray Anti-Condensation Heater for Fireray One |
| Dimensions: | Bracket - Base H:134mm x W:128mm, Arm 183mm x 169mm Heater: Cross section: 126mm x 27mm, Length 72mm |
| Operating voltage: | 24V AC/DC |
| Power Consumption @ 24V: | 20W |
| Max. in-rush current: | 3A |
| Steady-state current @ 24V: | 0.8A (typical) |
| Operating temperature: | -10 to +45ºC |
| Recommended fuse rating: | T2A |
| Connections: | 4 leads (2 for heater, 2 for fan) |
| Average temp. increase of lens above ambient: | 10°C |
| Weight: | 320g |
