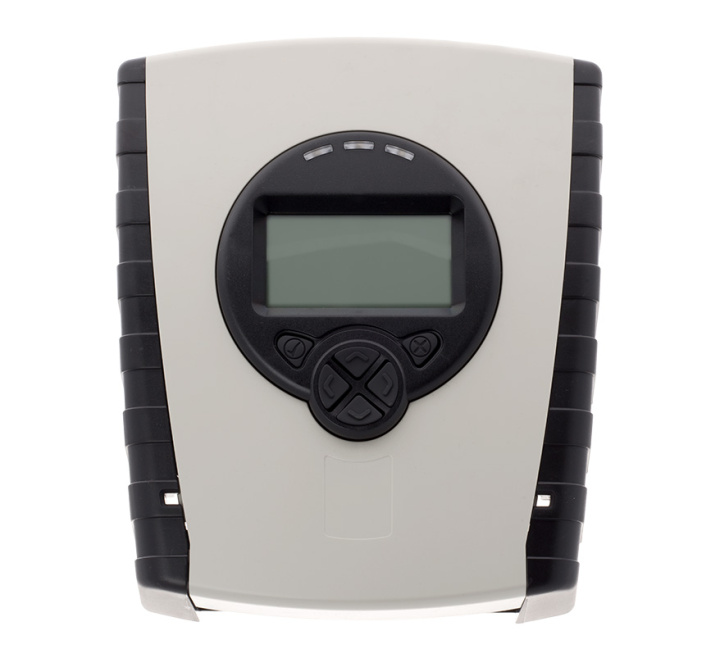

FFE Fireray 5000 Spare System Controller (5000-001)
SKU
5000-001
£795.60
£663.00
Fireray 5000 Spare System Controller (5000-001)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for FFE Fireray 5000 Spare System Controller (5000-001)
The Fireray® 5000 Spare System Controller (5000-001) supports up to two Fireray 5000 beam detector heads.
Key Features of the 5000-001 |
|---|
|
> Spare System Controller (low level)
> Logs the 50 most recent events > Programmable sensitivity and fire thresholds > 20mm cable gland knock-outs on system controller > 2-wire interface from system controller to detector > Working optical path for detector alignment > Ideally suited protecting large areas where use of traditional detectors would be difficult/costly to install > 5 year warranty |
| Brand | Fire Fighting Enterprises |
|---|---|
| Manufacturer Part No. | 5000-001 |
Write Your Own Review
FAQ’s for FFE Fireray 5000 Spare System Controller (5000-001)
No questions yet. Be the first to ask the question!
Product Specification for FFE Fireray 5000 Spare System Controller (5000-001)
| Product: | FireRay 5000 System Controller |
| Product code: | 5000-001 |
| Dimensions: | W:202mm x H:230mm x D:87mm (incl. base) |
| Operating voltage to system controller: | 14 - 36 VDC |
| Operating current, constant (typical): | 1 detector: 5.5mA; 36mA in fast alignment mode 2 detectors: 8mA; 36mA in fast alignment mode |
| Max. angular alignment of detector: | + 3.5oC |
| Contact voltage: | 0.1 - 36VDC - Fire & Fault relays (VFCO) |
| Contact current: | 0.1 - 100 mA - Fire & Fault relays (VFCO) |
| Cables: | 2 core, dedicated, 0.5 to 1.6mm (24-14 AWG); Length (system controller to detector) 100m |
| Operating temperature: | -10 to +55 °C |
| Storage temperature: | -40 to +85 °C |
| Humidity: | 0 - 93% (non-condensing) |
| IP Rating: | IP54 |
| Housing flammability rating: | UL94 V0 polycarbonate |
| CPR Reference: | 0832-CPR-F0390 |
| UL file: | S3417 |
