FFE Fireray 5000 Single Reflective Beam Detector Pack (100m) (5000-039)
SKU
5000-039
£967.20
£806.00
Fireray 5000 Single Reflective Beam Detector Pack (100m) (5000-039)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for FFE Fireray 5000 Single Reflective Beam Detector Pack (100m) (5000-039)

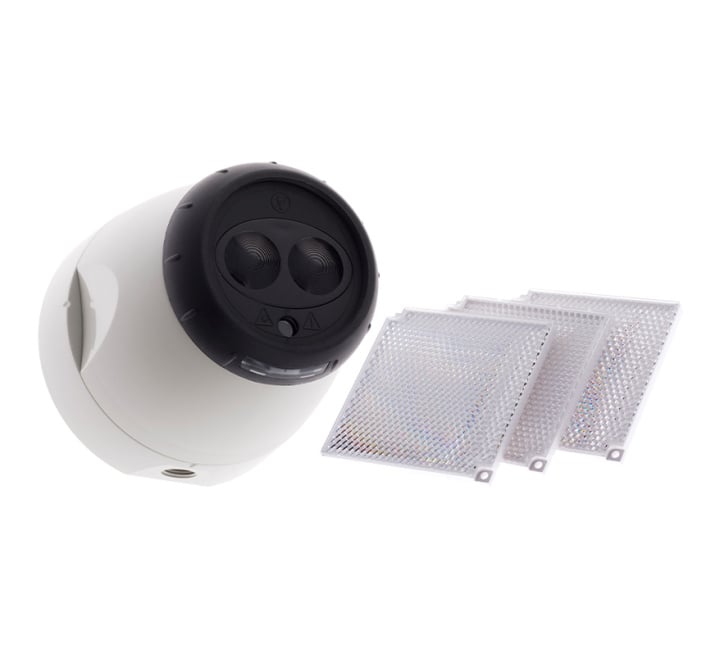

The Fireray® 5000 Single Detector pack contains one Fireray 5000 detector head plus 4x reflective prisms. Suitable for distances of 50m to 100m (5000-039).
Key Features of the 5000-039 |
|---|
|
> Detector head
> 4x reflective prisms > Suitable for distances of 50m to 100m > Separate fire and fault relays > Integral LASER alignment > Auto-Align fast automatic beam alignment > Contamination compensation > 2-wire interface from system controller to detector > Working optical path for detector alignment > Ideally suited protecting large areas where use of traditional detectors would be difficult/costly to install > 5 year warranty |
| Brand | Fire Fighting Enterprises |
|---|---|
| Manufacturer Part No. | 5000-039 |
Write Your Own Review
FAQ’s for FFE Fireray 5000 Single Reflective Beam Detector Pack (100m) (5000-039)
No questions yet. Be the first to ask the question!
Product Specification for FFE Fireray 5000 Single Reflective Beam Detector Pack (100m) (5000-039)
| Product: | FireRay 5000 Single Detector Pack |
| Product code: | 5000-039 |
| Dimensions: Detector: Reflector: | W:134mm x H:131mm x D:134mm W:100mm x H:101mm x D:10mm |
| Detection range: | 50 - 100m |
| Optical wavelength: | 850nm near infrared (invisible) |
| Operating voltage to system controller: | 14 - 36 VDC |
| Operating current, constant (typical): | 1 detector: 5.5mA; 36mA in fast alignment mode 2 detectors: 8mA; 36mA in fast alignment mode |
| Max. angular alignment of detector: | + 3.5oC |
| Contact voltage: | 0.1 - 36VDC - Fire & Fault relays (VFCO) |
| Contact current: | 0.1 - 100 mA - Fire & Fault relays (VFCO) |
| Cables: | 2 core, dedicated, 0.5 to 1.6mm (24-14 AWG); Length (system controller to detector) 100m |
| Operating temperature: | -10 to +55 °C |
| Storage temperature: | -40 to +85 °C |
| Humidity: | 0 - 93% (non-condensing) |
| IP Rating: | IP54 |
| Housing flammability rating: | UL94 V0 polycarbonate |
| CPR Reference: | 0832-CPR-F0390 |
| UL file: | S3417 |
