FFE Fireray 3000 End-to-End Infrared Beam Smoke Detector Kit (3000-101)
Product Details for FFE Fireray 3000 End-to-End Infrared Beam Smoke Detector Kit (3000-101)
The Fireray ® 3000 is designed for the most technically challenging installation environments. The system uses a paired set of transmitter/receiver heads to cover the protected area. The transmitter emits a narrow beam of infra-red (IR) light in order to monitor for smoke and is controlled using a compact low-level controller. Both detector heads (transmitter and receiver) have integral thumbwheels for ease of alignment. Using these thumbwheels provides a smooth and repeatable alignment process.
The Fireray ® 3000 model has been designed to be installed by a single engineer. It incorporates a visible laser as an alignment aid, with alignment LEDs offering visual feedback.
The Fireray ® 3000 is fully customisable, with both the alarm thresholds (sensitivity) and delay to alarm/fault being controlled from the low-level controller. This controller incorporates an LCD display, which offers a full icon-based, easy-to-use interface unit.
This controller enables ease of commissioning, testing and maintenance of the beam detection system.
Key Features of the 3000-101 |
|---|
|
> Range 5 to 120 metres, configurable per set of detectors
> Patented Light Cancellation Technology (LCT) cancels unwanted light, including sunlight, sodium lamps and fluorescent lighting > Integral laser alignment in receiver > 2-wire Interface between controller and receiver > Single and twin detector options > Separate fire and fault relays per detector > Low level controller with LCD display > Programmable sensitivity and fire/threshold > Contamination compensation > First-Fix design for transmitter, receiver and controller > Multiple cable gland knock-outs for ease of wiring > Optional transmitter powering from controller > Working optical path for detector alignment > EN54-12 and VdS approval > 5 year warranty |
| Brand | Fire Fighting Enterprises |
|---|---|
| Manufacturer Part No. | 3000-101 |
FAQ’s for FFE Fireray 3000 End-to-End Infrared Beam Smoke Detector Kit (3000-101)
Product Specification for FFE Fireray 3000 End-to-End Infrared Beam Smoke Detector Kit (3000-101)
| Product: | FireRay 3000 End-to-End Beam Smoke Detector system |
| Product code: | 3000-101 |
| Dimensions: Control unit Transmitter & Receiver | W:203mm x H:124mm x D:71.5mm W:78mm x H:77mm x D:161mm |
| Operating range: | 5 - 120 m |
| Operating voltage range: | 14 - 36 VDC + 10% |
| Operating controller current: | 1 or 2 receivers: 14mA constant |
| Operating transmitter current: | 8 mA per transmitter |
| Power down reset time: | > 20 seconds |
| Fire & fault relay contacts: | VFCO 2A @ 30V DC resistive |
| Optical wavelength: | 850 nm |
| Cables: | Length between receiver & controller - 100m |
| Operating temperature: | -10 to +55 °C |
| Storage temperature: | -20 to +55 °C |
| LED indications Control unit: Receiver: | Red=fire, amber=fault, green=system ok Alignment LEDs for single person alignment |
| Humidity: | 93% (non-condensing) |
| IP Rating: | IP54 (controller) |

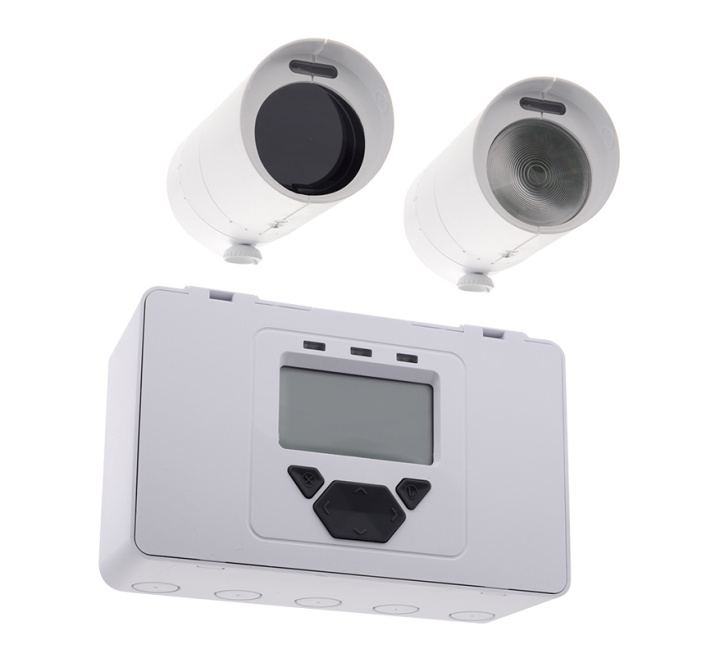

| Parts list System: Additional detector: | 1x transmitter (clear lens), 1x receiver (dark lens), 1x control unit 1x transmitter (clear lens), 1x receiver (dark lens) |
| Housing material (transmitter, receiver, controller): | UL94 V2 PC |
| CPD Reference: | 0786-CPD-21162 |
| UL file: | S3417 |
| Line of sight: | 0.3m |
