Fireco DorMag SmartSound Wireless Fire Door Holder (843-4317)
Product Details for Fireco DorMag SmartSound Wireless Fire Door Holder (843-4317)

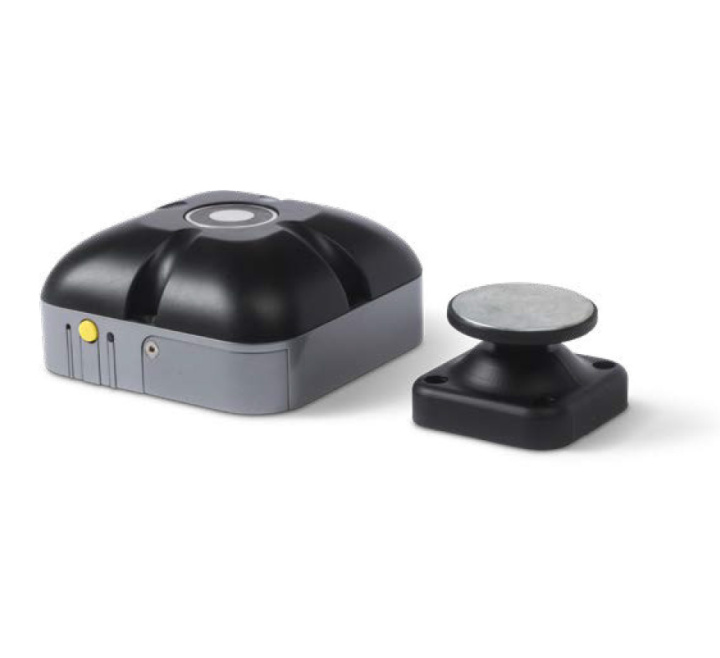

The DorMag SmartSound from Fireco is a wireless sound-activated fire door magnet / holder, designed for holding fire doors open legally and automatically releasing them to close when the fire alarm activates. DorMag SmartSound is ideal for areas with uneven floors and environments which require a more discreet door holder solution.
DorMag SmartSound uses advanced sound recognition technology to more accurately identify the sound of a fire alarm activation and dismiss irrelevant and nuisance noises.
Fast installation with flexible fitting options
DorMag SmartSound is easy to install and operate. Simply mount the DorMag unit to the wall and attach the keeper plate to the door. The DorMag is a battery powered device, allowing for quick and effortless installation with no hard-wiring or long cables required. It can be installed in multiple positions behind the door and its compact design allows for a discreet retrofit solution.
The DorMag SmartSound can be fitted to most internal doors, even glass, up to power size 5.
Key Features of the 843-4317 |
|---|
|
> Battery powered
> Flexible fitting options > Compact and discreet design > Easily installed retrofit solution > Advanced SmartSound listening technology > Can be fitted in multiple positions behind the door > Holds doors up to power size 5 (Max 100kg weight and 1250mm width) > 2 year warranty |
| Brand | Fireco Ltd |
|---|---|
| Manufacturer Part No. | 843-4317 |
FAQ’s for Fireco DorMag SmartSound Wireless Fire Door Holder (843-4317)
Product Specification for Fireco DorMag SmartSound Wireless Fire Door Holder (843-4317)
| Power | 4.5V Lithium Iron Disulfide (Li/FES2) battery pack |
| Colour | Black with silver band |
| Warranty | 2 years |
| Casing | ABS / ABS+PC plastic |
| Weight | 0.52kg |
| Installation position (DorMag SmartSound) | On the wall adjacent to the door, with the DorMag SmartSound magnet fully centred with the keeper plate |
| Installation position (Door Keeper) | Anywhere on the back of the door |
| Maximum door to wall depth (when door is fully opened, adjacent to the wall) | 95mm (keeper chain or floor bracket required for greater distances) |
| Maximum door to wall angle (when door is fully opened, adjacent to the wall) | Plus or minus 25° from parallel |
| Minimum door to wall angle (when door is closed) | 65° |
| Hold open positions | Can hold the door open at any angle (dependant on add-ons, i.e. floor bracket & keeper chain) |
| Activation | SmartSound listening technology |
| Audible warning | Yes |
| Maximum door size | Power size 5 (max of 100kg and 1250mm width) |
| Fire rating | DorMag has been tested to EN1634-1 on FD30 doorsets, exposed and unexposed faces |
| Compliant to | EN1155:1997+A1:2002, EN1634-1:2008, EMC Directive, Radio Equipment Directive, UN 38.3 Lithium certification, CE Marked, UKCA Marked |
| Classification | Standard (Category B) installations under BS 7273-4:2015+A1:2021 |
| Part number | 843-4317 DorMag SmartSound |
