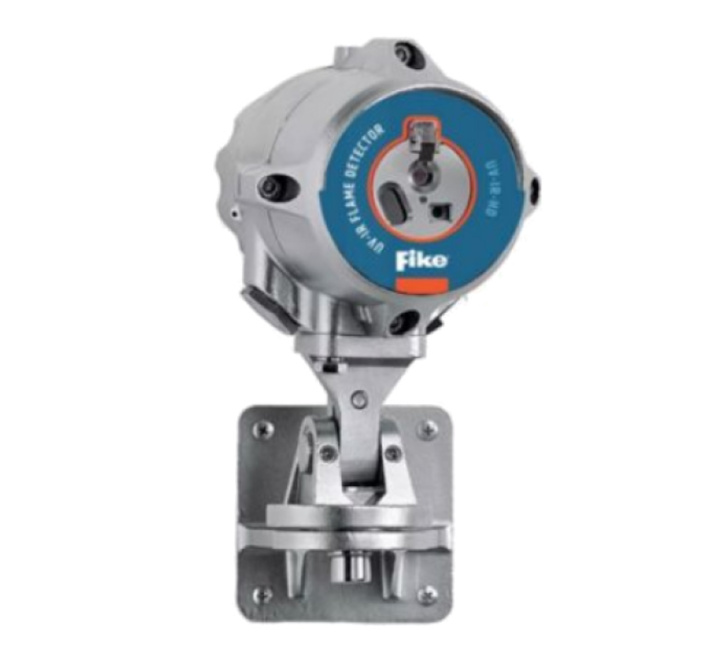

Fike UV/IR Flame Detector with HD Video Output (Hydrocarbon & Hydrogen Fires) (FIK-UV-IR-HD-AS11)
Product Details for Fike UV/IR Flame Detector with HD Video Output (Hydrocarbon & Hydrogen Fires) (FIK-UV-IR-HD-AS11)
The Fike UV-IR flame detector (FIK-UV-IR-HD-AS11) provides an ultra-fast response, high performance and reliable detection of a large variety of fires including hydrocarbon fires (visible and non- visible), as well as Hydrogen fires. The detector addresses slow-growing fires as well as fast eruptions of fire using improved UV-IR technology. The detector operates in all weather and light conditions.
The detector provides high-definition video output with clear imaging of fire event at up to 100 ft. (30m), allowing rescuers to know the exact situation before entering the hazardous area. It will automatically record a video of a fire event (1 min pre-alarm / up to 3 min post-alarm).
The Fike FIK-UV-IR-HD-AS11 provides ultra-fast detection within 5 milliseconds of fireballs or explosions; detects fires up to 100 ft away for a 1ft n-heptane fire.
Key Features of the FIK-UV-IR-HD-AS11 |
|---|
|
> High immunity to False Alarm
> Ultra-fast detection mode detection within 5 milliseconds for fireballs or explosions > Hydrogen and Hydrocarbon flame detection > High sensitivity – up to 100 ft. (30m) for a 1 ft2 (0.1m2) n-heptane pan fire > HD video output with Automatic HD video recording of fire events. Data/Event logger: Alarms, faults and other relevant events are logged to non-volatile memory > Ethernet communication – in addition to the standard methods, such as 4-20mA and Modbus > Built-in-Test (BIT) – Automatic and manual internal self-test of window cleanliness and the overall operation of the detector (for both IR and UV channels) > Window heater to avoid condensation and icing > Tilt mounting bracket can be connected either above or below the detector > UV and IR warning levels – 0-20mA – Current output warning when elevated UV or IR radiation is detected |
| Brand | Fike |
|---|---|
| Manufacturer Part No. | FIK-UV-IR-HD-AS11 |
| Product Series | Fike Specialist Detection |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Ultraviolet/Infrared (UV/IR) |
| Detectable Medium | Flame |
| Warranty | 5 Years |
