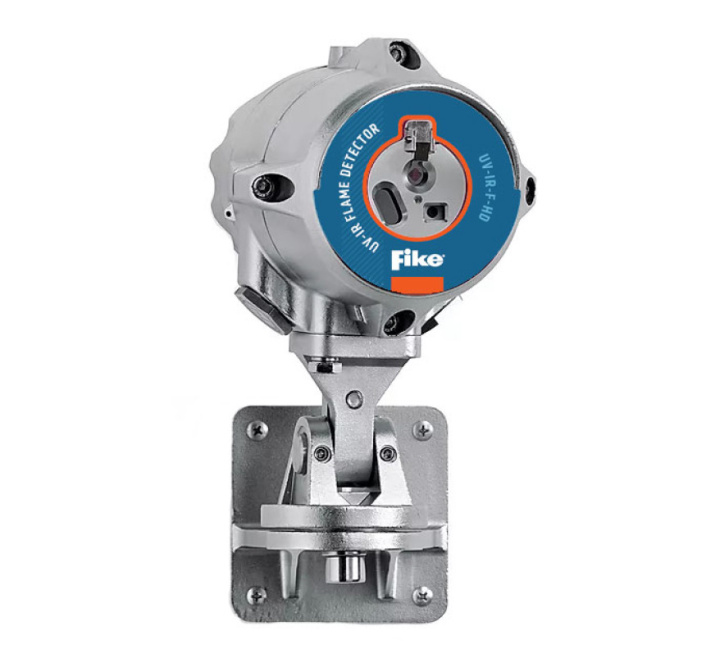

Fike UV/IR Flame Detector with HD Video Output (Hydrocarbon Fires Only) (FIK-UV-IR-F-HD-AS11)
Product Details for Fike UV/IR Flame Detector with HD Video Output (Hydrocarbon Fires Only) (FIK-UV-IR-F-HD-AS11)
The Fike UV-IR flame detector (FIK-UV-IR-F-HD-AS11) provides an ultra-fast response, high performance and reliable detection of hydrocarbon fires (visible and non-visible). The detector addresses slow-growing fires as well as fast eruptions of fire using improved UV-IR technology. The detector operates in all weather and light conditions.
The detector provides high-definition (HD) video output of the monitored area with clear imaging of a fire event and of personnel at distances up to 100 ft. (30m) allowing rescuers to know the exact situation before entering the hazardous area. It will automatically record a video of a fire event (1 min pre-alarm / up to 3 min post-alarm).
Add to that, the integral HD quality video, with event recording, on top of the proven superior capabilities of UV-IR flame detection and you have a very powerful safety tool to protect your personnel, plant and process.
Key Features of the FIK-UV-IR-F-HD-AS11 |
|---|
|
> High immunity to false alarm
> Hydrocarbon flame detection. Spectrum response of IR radiation in the 4.0-5.0 micron range > Ultra-fast detection mode detection within 5 milliseconds for fireballs or explosions > High sensitivity – up to 100 ft. (30m) for a 1 ft2 (0.1m2) nheptane pan fire > HD video output with Automatic HD video recording of fire events. Data /Event logger – alarms, faults and other relevant events are logged to non-volatile memory > Ethernet communication - in addition to the standard methods, such as 4-20mA and Modbus. > Built-in-Test (BIT) – Automatic and manual internal self-test of window cleanliness and the overall operation of the detector > Window heater to avoid condensation and icing > Tilt mounting bracket can be connected either above or below the detector > UV and IR warning levels – 0-20mA – Current output warning when elevated UV or IR radiation is detected |
| Brand | Fike |
|---|---|
| Manufacturer Part No. | FIK-UV-IR-F-HD-AS11 |
| Product Series | Fike Specialist Detection |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Ultraviolet/Infrared (UV/IR) |
| Detectable Medium | Flame |
| Warranty | 5 Years |
