Fike UV/IR Flame Detector (Hydrocarbon Fires Only) (FIK-UV-IR-F-AS11)
SKU
FIK-UV-IR-F-AS11
£2,812.20
£2,343.50
Fike UV/IR Flame Detector (Hydrocarbon Fires Only) (FIK-UV-IR-F-AS11)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Fike UV/IR Flame Detector (Hydrocarbon Fires Only) (FIK-UV-IR-F-AS11)

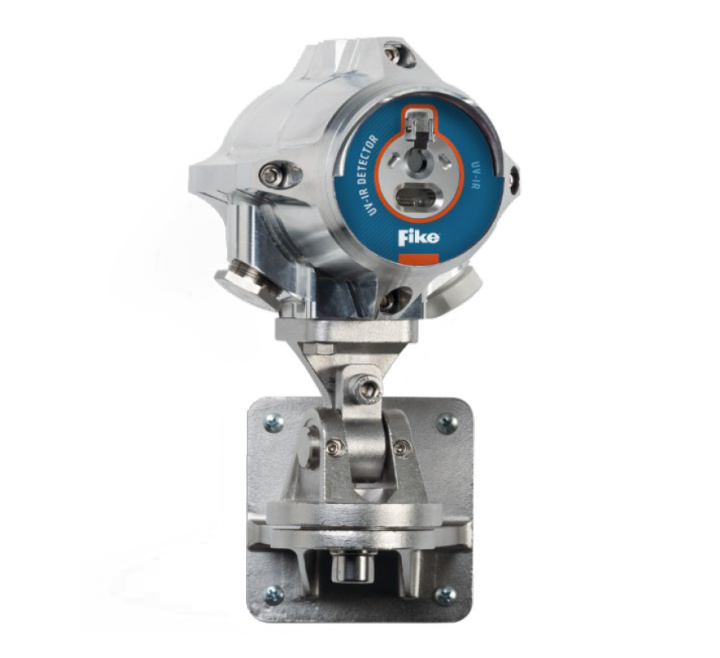

The Fike UV-IR flame detector (FIK-UV-IR-F-AS11) provides an ultra-fast response, high performance and reliable detection of hydrocarbon fires (visible and non- visible). The detector addresses slow-growing fires as well as fast eruptions of fire using improved UV-IR technology. The detector operates in all weather and light conditions.
Key Features of the FIK-UV-IR-F-AS11 |
|---|
|
> High immunity to false alarm
> Hydrocarbon flame detection. Spectrum response of IR radiation in the 4.0- 5.0 micron range > Ultra-fast detection – within 5 milliseconds for fireballs or explosions > High sensitivity – up to 100 ft. (30m) for a 1 ft2 (0.1m2) n-heptane pan fire > Data/Event logger – alarms, faults and other relevant events are logged to non-volatile memory > Built-in-Test (BIT) – Automatic and manual internal self-test of window cleanliness and the overall operation of the detector > Window heater to avoid condensation and icing > Tilt mounting bracket can be connected either above or below the detector > UV and IR warning levels - 0-20mA - Current output warning when elevated UV or IR radiation is detected > Meets NFPA 33 response requirement for flame detection within 0.5 seconds |
| Brand | Fike |
|---|---|
| Manufacturer Part No. | FIK-UV-IR-F-AS11 |
| Product Series | Fike Specialist Detection |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Ultraviolet/Infrared (UV/IR) |
| Detectable Medium | Flame |
| Warranty | 5 Years |
