Fike TwinflexPro² Repeater Panel (505-0010)
Limited Stock
Product Details for Fike TwinflexPro² Repeater Panel (505-0010)

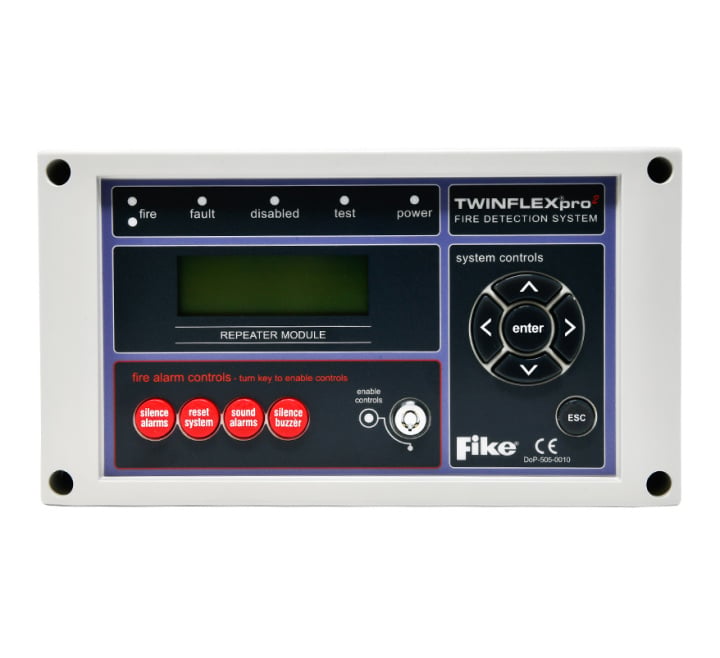

The Fike 505-0010 TWINFLEX®pro² repeater panel is smaller than the TWINFLEX®pro² control panel.
It does not itself connect to or control detection devices. Instead, it connects to a control panel and reports events which occur on the control panel.
It can also perform system controls over the network (i.e. Silence Alarms, Reset, Sound Alarms & Silence Buzzer).
A maximum of 8 repeater panels can be connected to a single control panel.
The maximum cable length from the control panel to a repeater is 500 metres. If 8 repeaters are used they must all be within the maximum 500 metres cable length.
All external connections are made on the back board. The Ext Switches on the back board are not currently used and are for a future development.
Key Features of the 505-0010 |
|---|
|
> Compatible with TwinflexPro² 4 & 8 Zone Panels
> Allows user to perform system controls over the network (i.e. Silence Alarms, Reset, Sound Alarms & Silence Buzzer) > Reports events from a main TwinflexPro² fire panel to a remote location > Up to a maximum of 8 repeater panels can be connected to a single TwinflexPro² control panel |
| Brand | Fike |
|---|---|
| Manufacturer Part No. | 505-0010 |
| Product Series | Twinflex |
| Primary Power Source | 24V DC |
| System Type | 2-Wire |
| Colour | Grey |
| Warranty | 2 Years |
