Fike Triple IR (Hydrogen) Flame Detector with HD Video Output (FIK-IR3-H2-HD-AS11)
Product Details for Fike Triple IR (Hydrogen) Flame Detector with HD Video Output (FIK-IR3-H2-HD-AS11)

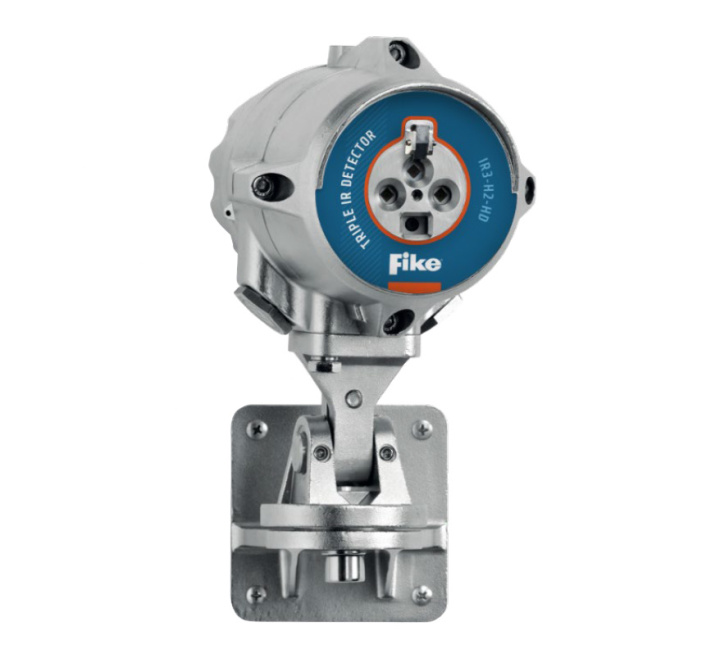

The Fike IR3-H2-HD flame detector (FIK-IR3-H2-HD-AS11) provides ultra-fast response, high performance and reliable detection of hydrogen fires. The detector addresses slow-growing fires as well as fast eruptions of fire using improved IR3 technology. The detector operates in all weather and light conditions.
Detection within 40 milliseconds of fireballs or explosions; the FIK-IR3-H2-HD-AS11 detects hydrogen fires 0-66 ft away within 1.2 seconds, and fires 67-100 ft away within 4 seconds.
The detector provides high-definition (HD) video output of the monitored area with clear imaging of a fire event and of personnel at distances up to 100 ft. (30m). This allows the rescue team to be aware of the exact situation before entering the hazardous area. Video and data of events are stored and saved quickly to non-volatile memory for post incident investigation. The recordings start one minute before detection and continue for up to four minutes.
Add to that, the integral HD quality video, with event recording, on top of the proven superior capabilities of Triple IR (IR3) flame detection and you have a very powerful safety tool to protect your personnel, plant and process.
Key Features of the FIK-IR3-H2-HD-AS11 |
|---|
|
> High immunity to false alarm, including arc welding
> Ultra-fast detection mode detection within 40 milliseconds for Hydrogen fireballs or explosions > Detects hydrogen, ammonia, methane & Syngas flames: 3 infrared wavelengths with clear separation. > Five selectable sensitivity levels > HD or composite video output with automatic HD video recording of events > Data/Event logger – alarms, faults and other relevant events are logged to non-volatile memory > Universal outputs, 3 and 4 wire, 4-20 mA sink/source, Fire, Auxiliary and Fault Relays, RS485 port using Modbus RTU > Built-in-Test (BIT) – Automatic and manual self-test of window cleanliness and overall detector operation > Window heater to avoid condensation and icing > Stainless steel tilt mount, adjustable horizontally/vertically |
| Brand | Fike |
|---|---|
| Manufacturer Part No. | FIK-IR3-H2-HD-AS11 |
| Product Series | Fike Specialist Detection |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Triple Infrared (IR³) |
| Detectable Medium | Flame |
| Warranty | 5 Years |
