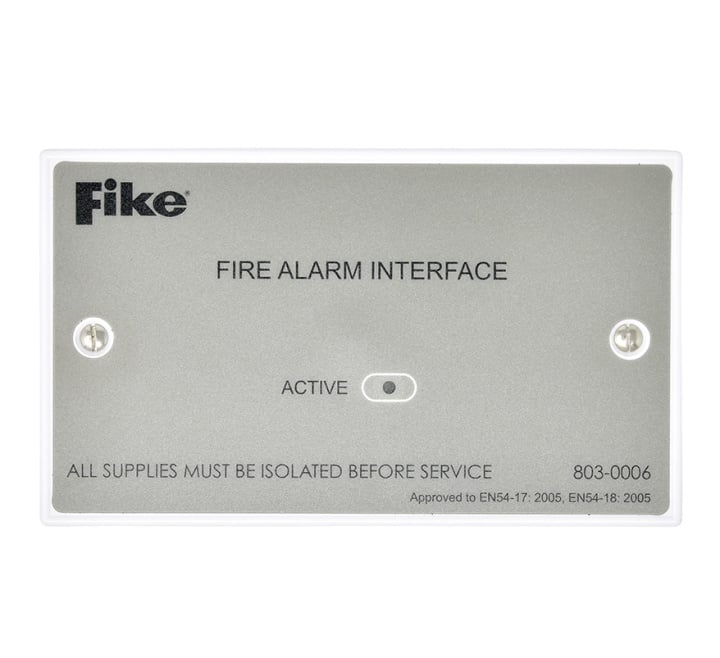

Fike Sita Addressable Loop Input / Output Module (803-0006)
SKU
803-0006
£95.50
£79.58
Fike Sita Addressable Loop Input / Output Module (803-0006)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Fike Sita Addressable Loop Input / Output Module (803-0006)
The Fike 803-0006 is an addressable multifunction auxiliary I/O unit mounted within a standard double gang box. Relay output to provide shutdown facilities with 230V AC 3A rated DPCO relay contacts and monitored input facility. Connects to the addressable loop.
Key Features of the 803-0006 |
|---|
|
> Addressable I/O
> Double Gang Box Mounting > Connects to Loop > Suitable for both low and mains voltage applications |
| Brand | Fike |
|---|---|
| Manufacturer Part No. | 803-0006 |
| Product Series | SITA |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Fike SITA |
| Colour | Grey |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Fike Sita Addressable Loop Input / Output Module (803-0006)
No questions yet. Be the first to ask the question!
Product Specification for Fike Sita Addressable Loop Input / Output Module (803-0006)
- Operating Temperature : -10°C to +50°C
- Voltage Range : 24 to 42v DC
- LED Indication : Output Activated
- Contact Rating :
- Relay 1 : Max load 230V AC 2A (DPCO)
- Relay 2 : Max load 30V DC 2A (SPCO)
- Fuses : 3.15A Antisurge 20mm Ceramic (eg. Bussman S505-3.15A)
- Dimensions :
- Overall : 146x87x41mm
- Back Box : 146x87x32mm
