Fike Sita Addressable Loop Control Module (803-0022)
SKU
803-0022
£95.50
£79.58
Fike Sita Addressable Loop Control Module (803-0022)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Fike Sita Addressable Loop Control Module (803-0022)

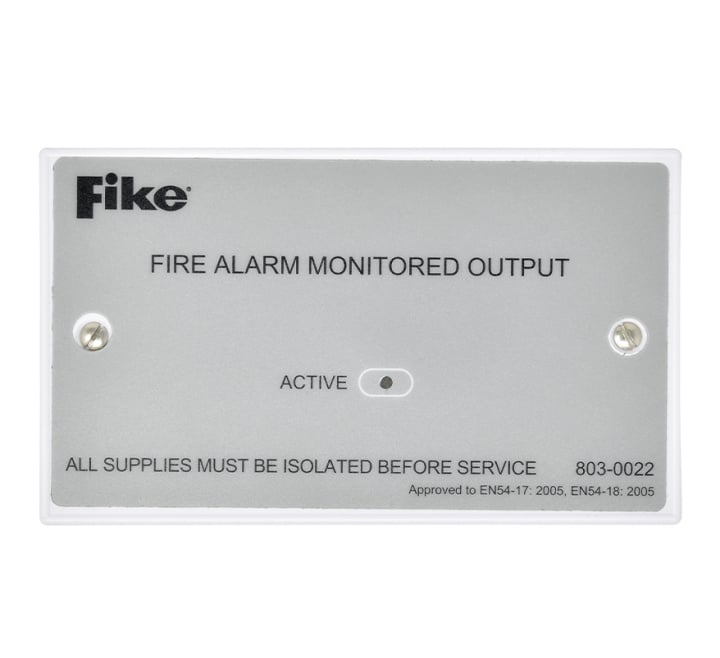

The Fike 803-0022 is an addressable monitored output unit mounted with a standard double gang box. Provides a single 24vdc monitored output suitable for the control of conventional Sounders and Visual Alarm Devices. Connects to the addressable loop. Requires a 24v DC EN54 PSU.
Key Features of the 803-0022 |
|---|
|
> Monitored output unit to Fike Sita addressable systems
> Provides a single 24V DC monitored output suitable for the control of conventional sounders/beacons > Supplied with a double gang back box |
| Brand | Fike |
|---|---|
| Manufacturer Part No. | 803-0022 |
| Product Series | SITA |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Fike SITA |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for Fike Sita Addressable Loop Control Module (803-0022)
No questions yet. Be the first to ask the question!
Product Specification for Fike Sita Addressable Loop Control Module (803-0022)
- Operating Temperature : -10°C to +50°C
- Voltage Range : 32 to 42v DC
- PSU Input Voltage : 24 to 32v DC
- LED Indication :
- Output Activated : LED on
- Contact Rating :
- Output : Max load 2.5A
- Fuses :
- Fuse 1 : 3A Anti surge 20mm (eg. Bussman S505-3.15A)
- Dimensions :
- Overall : 146x87x41mm
- Back Box : 146x87x32mm
