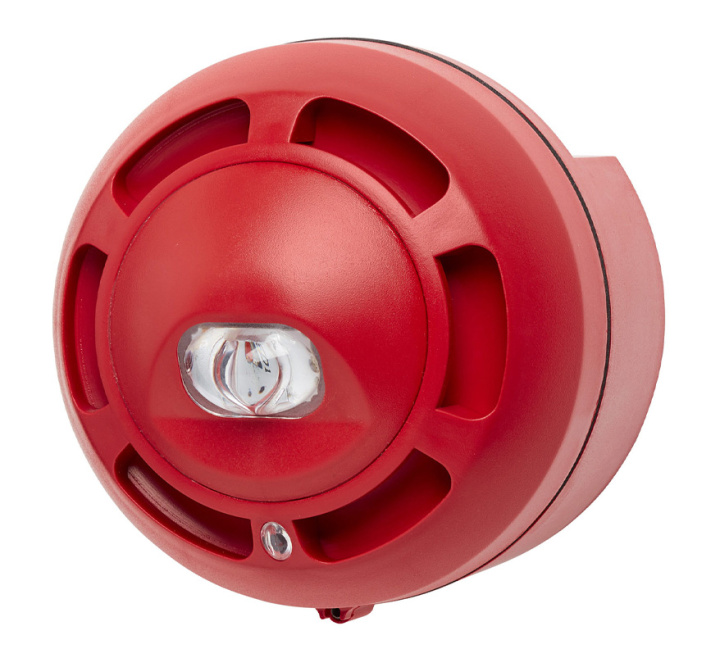

Fike NSF100 Conventional Sounder & White VAD - 32 Tones, Red (NSF100R-W-S)
Limited Stock
Product Details for Fike NSF100 Conventional Sounder & White VAD - 32 Tones, Red (NSF100R-W-S)
The Fike NSF100R-W-S is an EN54-approved sounder/VAD device that offers a highly efficient and low-power solution for alarm signalling when both audible and visual signals are necessary.
Featuring a convenient combination of a sounder and VAD in a single unit, the Fike NSF100 utilises a unique first-fix installation method in its base. This allows for quick and easy installation, ultimately reducing the overall installation costs.
Designed with high-quality materials and a robust build, this device ensures hassle-free operation throughout its lifespan, even in challenging environments.
The Fike NSF100 offers a wide range of selectable options for tones and flash patterns, making it suitable for a diverse range of applications.
Key Features of the NSF100R-W-S |
|---|
|
> Quick First fix installation
> Wide operating voltage > Low power consumption > Attractive design > Full independent monitoring of pre-alarm and alarm channels (Dual flash versions) > 32 alarm tones > 2 stage alarm option > Fully synchronised > Approved to EN54-3 and EN54-23 |
| Brand | Fike |
|---|---|
| Manufacturer Part No. | NSF100R-W-S |
| Product Series | Fike Conventional (4-Wire) |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 2 Years |
FAQ’s for Fike NSF100 Conventional Sounder & White VAD - 32 Tones, Red (NSF100R-W-S)
Product Specification for Fike NSF100 Conventional Sounder & White VAD - 32 Tones, Red (NSF100R-W-S)
| Supply voltage range |
Compliant operating range 18—56 V dc, Maximum Max Operating range 18 – 56V dc |
|---|---|
| Current consumption |
VAD 10mA to 30mA dependent on setting : Sounder 10mA to 30mA depending on setting |
| Power consumption |
Max. 2.4W : 0.5W to 2.4W depending on setting and supply voltage |
| Cable monitoring |
Individual reverse polarity monitoring on both Pre-alarm and Alarm circuits |
| Terminal size |
0.28 to 2.5mm² conductor |
| LED Configuration |
White LED’s |
| Mounting |
Wall |
| EN54 –23 coverage |
W2.4—7.6 (High setting) : W2.4-5.6 (Low setting) |
| EN54 –23 coverage volume |
138m³ (High setting) : 75m³ (Low setting) |
| Sound Output |
92dB(A) to 110dB(A) depending on tone, 98dB(A) to 110dB(A) depending on tone |
| 32 selectable tones |
Selected via DIL switch |
| Volume control |
Provides up to -15dB attenuation |
| Flash options |
High and low output, 1s and 2s flash rates DIL switch selectable |
| Material |
V0 rated ABS body & base, V0 Polycarbonate lens |
| Weight |
146g Shallow base |
| Base colour |
Red |
| Lens colour |
Clear |
| Fixing method |
Body to base – Bayonet auto connect, Base to wall – Screw |
| Operating temperature |
–25°C to +75°C |
| IP Rating |
IP33C |
