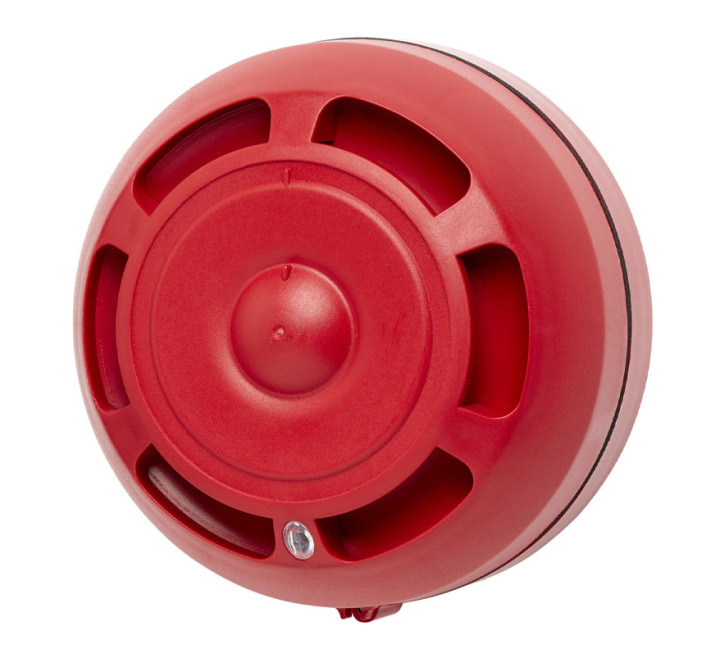

Fike NS100 Conventional Sounder - 32 Tones, Red, Deep IP65 Base (NS100R-D)
Product Details for Fike NS100 Conventional Sounder - 32 Tones, Red, Deep IP65 Base (NS100R-D)
The Fike NS100R-D is an EN54-approved sounder that offers a high-efficiency, low-power solution for alarm signalling with audible alerts. Its unique first-fix installation method in the base allows for quick and cost-effective installation and this variant includes a deep mounting base rated to IP65.
Designed with high quality and durability in mind, the NS100 ensures trouble-free operation even in tough environments. Its robust design guarantees reliable performance throughout the product's lifespan.
With a wide range of selectable tone options, the NS100 is suitable for a diverse range of applications, making it a versatile choice for various environments and requirements.
Key Features of the NS100R-D |
|---|
|
> IP65 rated deep mounting base
> Quick First fix installation > Wide operating voltage 12 to 56Vdc > Low power consumption > Reverse polarity monitoring > 32 alarm tones > 2 stage alarm option > Fully synchronised |
| Brand | Fike |
|---|---|
| Manufacturer Part No. | NS100R-D |
| Product Series | Fike Conventional (4-Wire) |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Colour | Red |
| Warranty | 2 Years |
FAQ’s for Fike NS100 Conventional Sounder - 32 Tones, Red, Deep IP65 Base (NS100R-D)
Product Specification for Fike NS100 Conventional Sounder - 32 Tones, Red, Deep IP65 Base (NS100R-D)
| Supply voltage range |
Compliant operating range 18—56 V dc, Maximum Operating range 12 – 56V dc |
|---|---|
| Current consumption |
10mA to 30mA depending on setting |
| Cable monitoring |
reverse polarity monitoring |
| Terminal size |
0.28 to 2.5mm² conductor |
| Sound Output |
>95dB(A) < 110dB(A) tone dependant |
| 32 selectable tones |
Selected via DIL switch |
| Volume control |
Provides up to –25dB attenuation |
| Flash options |
High and low output, 1s and 2s flash rates DIL switch selectable |
| Material |
V0 rated ABS body & base, V0 Polycarbonate lens |
| Weight |
225g |
| Base colour |
White or Red |
| Fixing method |
Body to base – Bayonet auto connect, Base to wall – Screw |
| Operating temperature |
–25°C to +75°C |
| IP Rating |
IP65 and Type B |
